AIR SHOWER USER’S MANUAL

日期:2020-09-23 00:51
浏览次数:155
摘要: AIR SHOWER USER’S MANUAL Model:FLB-1B/FLB-1A/FLB-1C/FLB-1D/FLB-1200/FLB-2400/FLB-3600 Clean air shower Air shower series products are a kind of general partial purification equipment, installed between clean room and non clean room. When people and goods to enter the clean area subject to the wind rain shower, blow out the clean air can remove people and goods carried by dust, can effectively block or reduce dust source in clean.

Air shower

 USER’S MANUAL


Model:FLB-1B/FLB-1A/FLB-1C/FLB-1D/FLB-1200/FLB-2400/FLB-3600

Clean air shower

Air shower series products are a kind of general partial purification equipment, installed between clean room and non clean room. When people and goods to enter the clean area subject to the wind rain shower, blow out the clean air can remove people and goods carried by dust, can effectively block or reduce dust source in clean areas. Air shower before and after the two doors for electronic lock, but also have the effect of air brake, prevent raw air into the clean area.



Product characteristics

1, The appearance of small size, for the selection of limited channel provides more flexibility.

2,The wind leaching time adjustable 0 ~ 60 seconds.

3 In order to effectively prevent and clean inside and outside the region air flow are, as long as the outer door opened, the workspace is to start the air supply.

Air shower





AAS - 700 AS/AAS - 700 AR type air shower

Product Features

1, The appearance of small size, for the limited channel selection provides more flexibility.

1,Can be customized sanmen, around the corner functions such as air shower, for you to choose the larger range, adapt to different place to work.

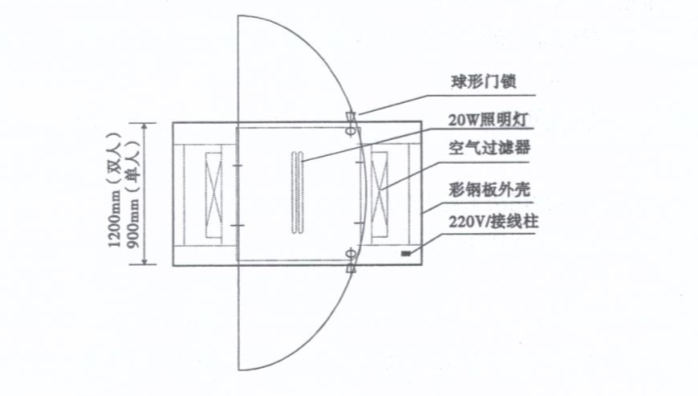

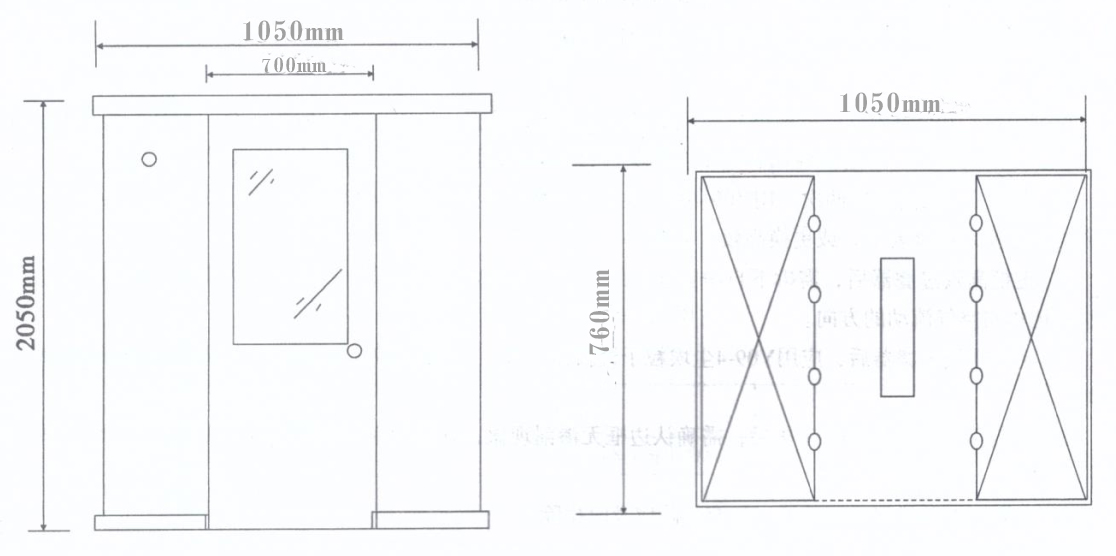

AAS - 700 as/AAS - 700 ar schematic diagram







Technical parameters:

Air shower type

FLB-1B

FLB-1A

FLB-1C

FLB-1DCorner)

Use the number

A single single blow

A single double blow

Double single blow

A single single blow

Air shower time

0 ~ 99 s is adjustable

The nozzle number

6

12

9

8

Jet diameter

Φ30mm

Diameter nozzle breeze

2028m/s

The nozzle mouth material

Stainless steel

The filter efficiency

For particle size of 0.5 mu m dust should be 99.99% or higher flame method (sodium)

Air shower area size

 700*750*2000

 700*750*2000

 700*1150*2000

700*750*2000

Overall dimensions

1050*760*2050

1300*760*2050

1050*1200*2050

1050*760*2050

The power supply

AC 220V 50Hz

Maximum power (W)

550

1100

2200

550

 Weight (Kg)

200

250

500

200

Hepa filter size and quantity

600×600×120×1

600×600×120×2

600×600×120

×4

600×600×120×1



Air shower type

FLB-1200

FLB-2400

FLB-3600

Use the number

Double double blow

The four double blow

To deepen the double blow

Air shower time

0 ~ 99 s is adjustable

The nozzle number

18

36

48

Jet diameter

Φ30mm

Diameter nozzle breeze

20~28m/s

The nozzle mouth material

stainless steal

The filter efficiency

For particle size of 0.5 mu m dust should be 99.99% or higher flame method (sodium)

The power supply

AC 220V 50Hz

Job dimensions

1200*700*1900

2400*700*1900

3600*700*1900

Installation dimensions

1200*1300*2050

1300*2400*2050

3600*1300*2050







Model

AAS-700AS

Filtration efficiency

≥99.97%@≥0.5μm

Air shower time

0 ~ 60 s (adjustable)

With the nozzle diameter

Φ30mm

Spit out the wind speed

15~20m/s

The power supply

AC single-phase 220 v / 50 hz

The power consumption of the largest

1000W

The weight of the

~300kg

Hepa filter specifications and quantity

600×600×120×⑧

Enclosure

Eps thin caigang composite panels

Pre filter specifications and quantity

850×580×10t×⑧









Model

AAS-700AS

Filtration efficiency

≥99.97%@≥0.5μm

Air shower time

0 ~ 60 s (adjustable)

With the nozzle diameter

Φ30mm

Spit out the wind speed

15~20m/s

The power supply

AC single-phase 220 v / 50 hz

The power consumption of the largest

1000W

The weight of the

~300kg

Hepa filter specifications and quantity

600×600×120×⑧

Enclosure

Eps thin caigang composite panels

Pre filter specifications and quantity

850×580×10t×⑧





Additional function-electronic automatic interlock

1Introduction

Air shower control system is mainly used for air shower room, shower room and automatic control of air shower channel.Can automatically realize the inside and outside the door interlock and unlock;Rev. Stop lighting;The human body function such as automatic induction and start-stop of the fan.Products in the automatic process related voice prompt, and have air shower time, QianHouMen unlock delay time, lighting the flexible function such as delay time is adjustable.

2Motherboard mask schematic and buttons

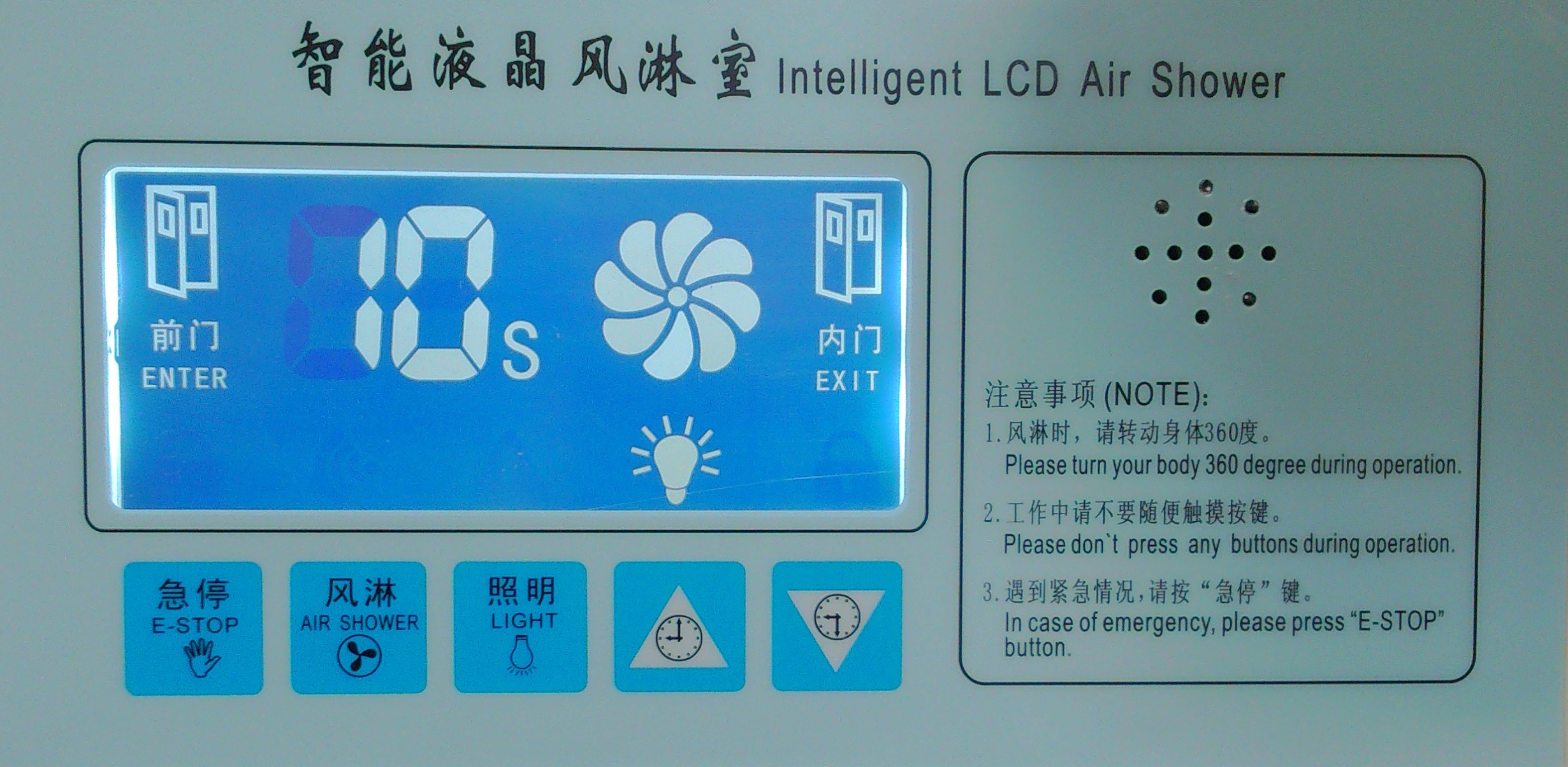

A、Air shower control panel buttons:

1、Stop button: press the stop button at any time, the blue backlit LCD screen stop flashing, graphics and automatic fire lighting of all output, press again, system restore to its original state.This button is mainly used for inside and outside the door can't unlock, the wind cannot be automatically closed and other maintenance.

2、Air shower buttonIn the inside and outside the door is closed, presses the button, the manual system into the wind leaching process.This button is mainly used for gate magnetism, the infrared failure or fan maintenance.

3、Lighting buttons:Using the "lighting" button, can switch air shower indoor lighting.This button is mainly used for door sensor failure or maintenance of lamps and lanterns.

4、Up, down keys:In air shower before or after, through the air shower, cut key adjustment in the delay time.Enter the internal parameter is set to adjust or options.

BThe air shower light and digital tube display shows:

1、Air shower countdown display: the blue backlit LCD screen display, job value and displays the air shower time air shower time remaining, set menu, used to display menu parameters.

2、LCD screen outside door open graphics: when the outside door open, besides the door open graphics flashing (after can be used to check whether the outside door magnetic is normal).

3、LCD induction graphics: when the body into the induction zone, the induction the flashing (after-sales can be used to check whether the photoelectric switch is normal).

4、LCD screen inside door open graphics: when interior door open, the inside door open graphics flashing (after-sales can be used to check whether the inner magnetic normal).

5、LCD screen to drench graphics: -- spray graphics flashing, indicating the wind rain fan has been started automatically or manually.

6、LCD scram graphics: this stop graphics and flashing, indicator system in the stop state.

7、Graphic LCD lighting: lighting the graphics flashing, indicating lights start, can according to the button to turn off or start again.

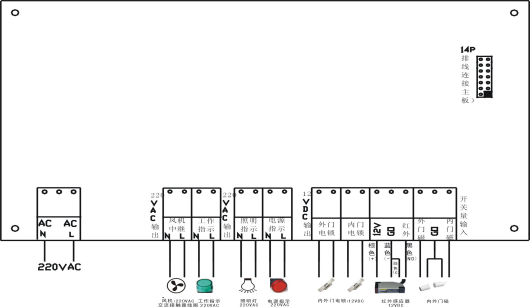

三、Vice board wiring diagram input and output terminal interface specifications:

三、Instructions for

A、Air shower work parameters set:

1、System is equipped with an external parameter Settings: air shower time setting and external parameter Settings can be directly modified with the cut on the key.

2、System has six internal parameter Settings, four of them within time and 2 as the feature parameters, set up internal parameter setting should be continuous press the stop button for 30 seconds into the internal state of parameter Settings.Setup, abrupt stop button to use as a set key, the wind leaching keys used as page button, adjust the up and down keys are set parameters can be adjusted.

3、Continuous press the stop button after 30 seconds into the state of parameter Settings, such as press air shower, LCD screen leaching time position will, in turn, circulating according TI, TO, TC, TL, Td, Tn six parameters.Corresponding: TI outside door unlocked delay setting, TO the inner time setting, TC after air shower time unlock setting, TL lighting time delay setting, Td function setting, Tn door swaps set, complete set, 5 seconds if there is no automatic storage operation and exit the Settings.

BAir shower working parameters set operation:

1、Air shower time setting: this option for external time parameters, in the air shower before or after, hold down the raise or lower key, through the upper and lower adjusting button can change after the wind rain delay time, the adjusting range 1-99 seconds, and by the LCD digital display, adjust after 5 seconds, the system automatically save the parameter values.

2、Outside door unlock delay set TI: this option for internal time, continuous press the stop button for 30 seconds, the system into the internal parameters setting, LCD display: TI, according to increase or reduce key again to view outside door unlock delay time, the unit is in seconds, according to increase or reduce keys can be adjusted from 0-99 seconds, press air shower and into the next option, 5 seconds is not save parameters exit the Settings button trigger system.

3、Interior door unlock time delay is set TO: after completion of outside door is set TO again in 5 seconds press the wind rain, into the interior door unlock delay set (TO), through the upper and lower adjusting button can view and adjusting time in 0-99 seconds.Press air shower and into the next option, 5 seconds is not save parameters exit the Settings button trigger system.

4、Air shower after the electric lock delay unlock setting TC:

After completion of lighting set up 5 seconds press the air shower, again into the electric lock delay unlock time setting (TL), through the upper and lower adjusting button can view and adjust the lighting in 0-99 minutes delay time.Press air shower and into the next option, 5 seconds is not save parameters exit the Settings button trigger system.

5、Lighting time delay setting TL:

Completion of delay electric lock unlock Settings, need again in 5 seconds press the wind rain, into the lighting time delay setting (TL), through the upper and lower adjusting button can view and adjust time in 0-60 minutes, 0-59 as the actual number of minutes.Press air shower and into the next option, 5 seconds is not save parameters exit the Settings button trigger system.

6、Set of Td feature set:

Set to 0 to ordinary, namely "- induction - blowing rain - that take the door to go out" process control;When set to 1 for no induction type, namely "the door - blowing tube - go out" process control;When set to 2 for one, namely "induction - blowing leaching process control.

7、Swap function set Tn door:

Door swap function has two state of 0 s and 1 s, is set to 0 is normal, is set to 1 for swaps;Such as front and back door when installation the wrong, is set to 1, you can swap to work properly.

CConventional air shower work process:

1、Into the clean area:

1.1Outside personnel entering a clean area to open the door, interior door electric lock automatically locked in wind rain indoor purify air flows into the clean area, air shower lights lit, outside work indicator.

1.2After entering the air shower close the outside door, voice: "hello, please stand in the induction zone".System infrared probe began to detect someone like someone is detected, the system is transferred to the wind leaching process.

1.3After entering the air shower close the outside door, voice: "hello, please stand in the induction zone".System infrared probe began to detect someone like someone is detected, the system is transferred to the wind leaching process.

1.4Such as system time to detect after the door shut out someone, air shower system inside and outside the door unlocked, return to standby mode, infrared will continue to test, if someone is detected, the inside and outside the locked door, air shower to start the wind rain.

1.5Wind leaching process, some press raised, cut, and the lighting switch, voice prompts: "working, please don't touch the switch".

1.6Wind leaching process, when someone according to the urgent stop switch will end the wind rain.Press stop to cancel again stop state.

1.7The wind after the rain, interior door unlocking, voice prompt: "pour over, please exit from the back door".

1.8Shut out of the air shower and interior door, after system back to the initial state, waiting for the next use.

1.9After wind rain, interior door unlocked.The personnel within the prescribed time inside didn't leave the air shower, system default may have left, return to standby mode automatically.

1.10Lights light up, time is not fire again, automatically go out.

2、Leave the clean area:

2.1Open the inner door, electric door lock locking outside, the wind leaching room lights light up, work indicator.

2.2People into the air shower, close the interior door, the system began to detect whether someone in air shower, such as detected no one within the prescribed time, both inside and outside the door unlocked.

2.3If someone is detected, the system for personnel outside the open doors, interior door lock, when close the outside door, return to original state system.

2.4In case of special circumstances, people can choose to return to clean areas, on the personnel system for open inside and outside the door electric locking, when close the interior door, return to original state system.

2.5Outside the door open, such as less than one time detection, if the open outside the door first, system is to enter the clean area process;If the first open the inner door, leave clean net system in process.

2.6Lights light up, time is not fire again, automatically go out.

五、Use notice:

1、Panel size: 244 * 125 (MM), requires opening size: add 1-2 MM per side.

2、Products use door magnetic switch requirement: closed contact closure, off contact when opening the door.

3、Products using infrared induction switch requirement: 12 VDC power supply, no person off contact, when someone contact closure.





Structural features

Air shower cap, cabinets, chassis, QianHouMen, secondary filters, fan and electrical control function and so on, has compact structure, strong and durable, beautiful and easy, etc.


Working principle

After turning on the power supply (electricity press a button, and then press the power), air shower into the working state, the staff to open the front can start a state of low noise fan for air shower, air shower room air through the filter pressure static pressure, after filter press out, through the secondary filter device is from the side of the box body after purification air vents high-speed jet, the blowing clean air can remove people and goods carried by dust, achieve the purpose of air shower dust removal, air shower time after a few seconds (blowing time) can be set automatically stop supply, purification staff can open the back into the studio.



Install and use

1, Install the chassis first position location, set will on both sides of the box installed in the chassis, after put in a good cap and the fixed, connect all electrical cables, before and after the fixed frame, door leaf panels and decorative, the inject sealant that is into contact, and should wipe WuChen appearance.

2, This equipment can power on the power of the purification workshop, to share power with clean room at the same time, can use simultaneously.



Maintenance and maintenance

Use after a period of time found a black on the surface of air prefilter let dust quantity increase, nozzle wind speed slows down, you can remove the filter, with water after drying after use.The pre-filter generally can be used repeatedly after 3-5 times should replace the new filter material, in the use of eighteen months after the secondary filter should be replaced at the same time, to ensure that the purification efficiency and spewing wind speed.
