PRODUCT:Y09-5100 particle counter

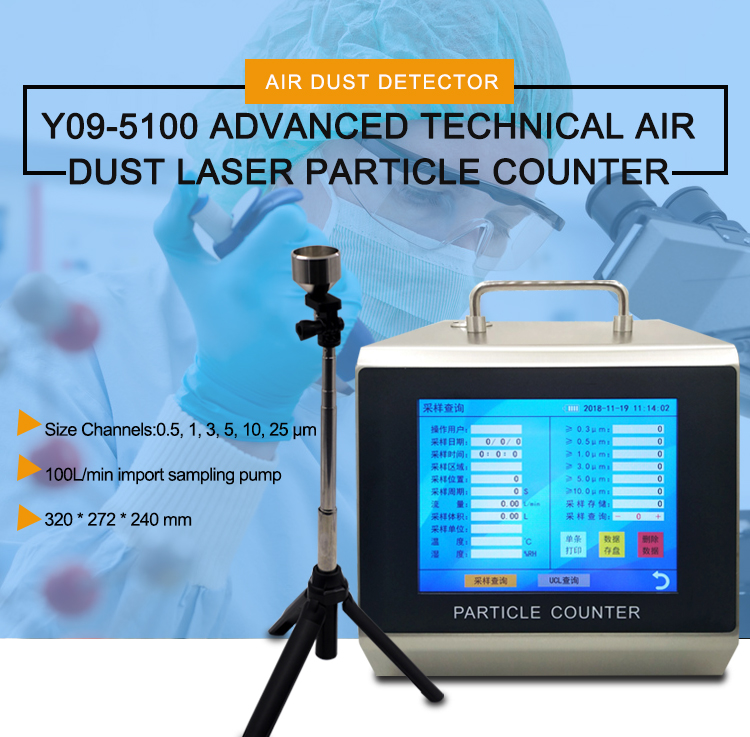

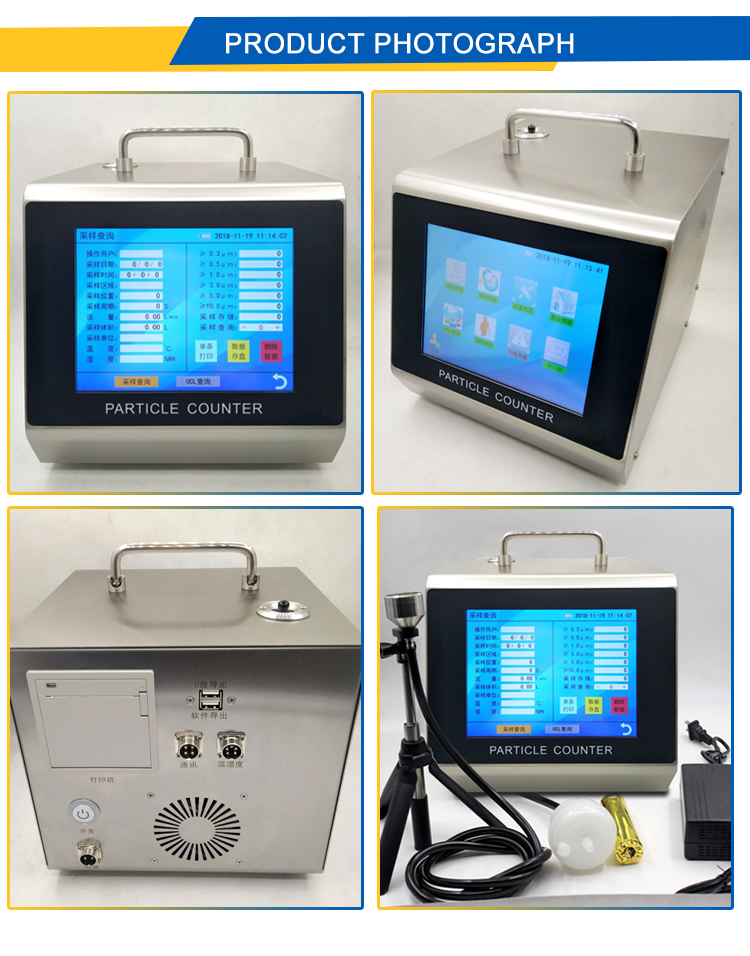

Y09-5100  Laser Counter

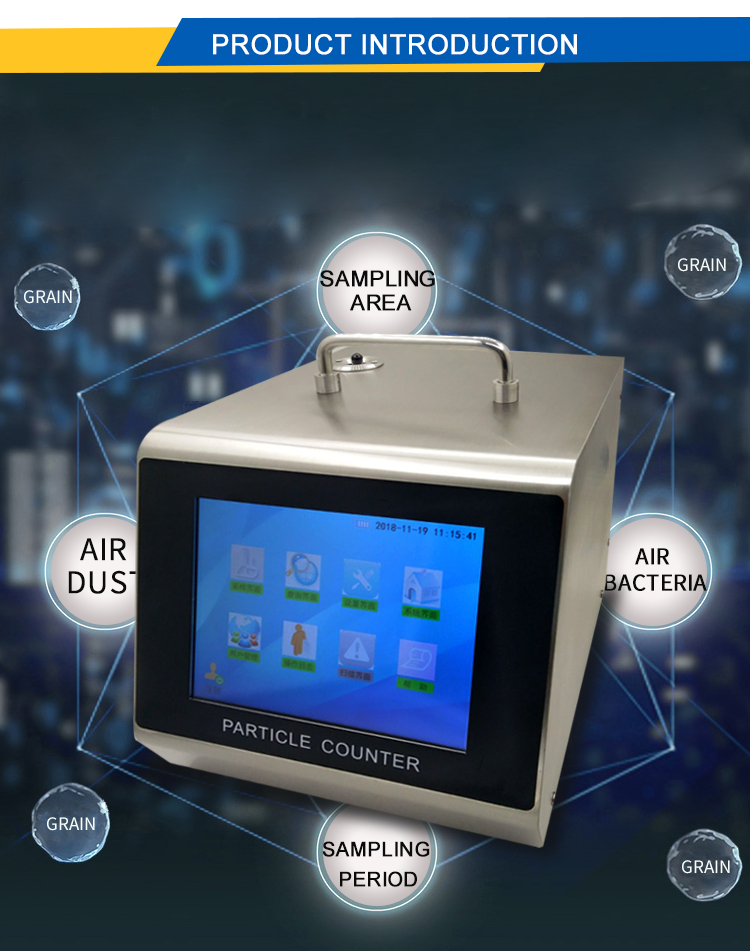

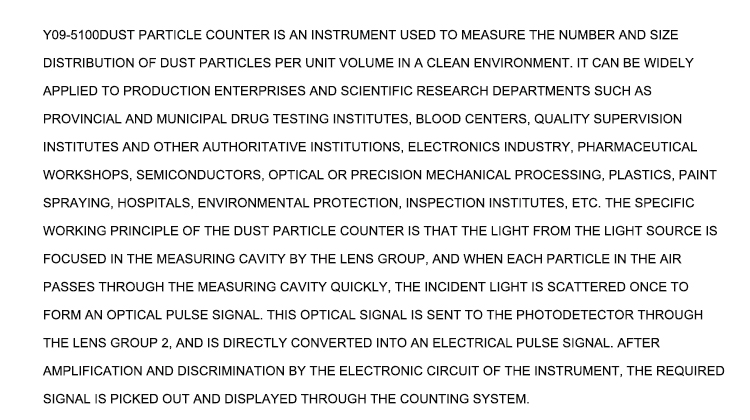

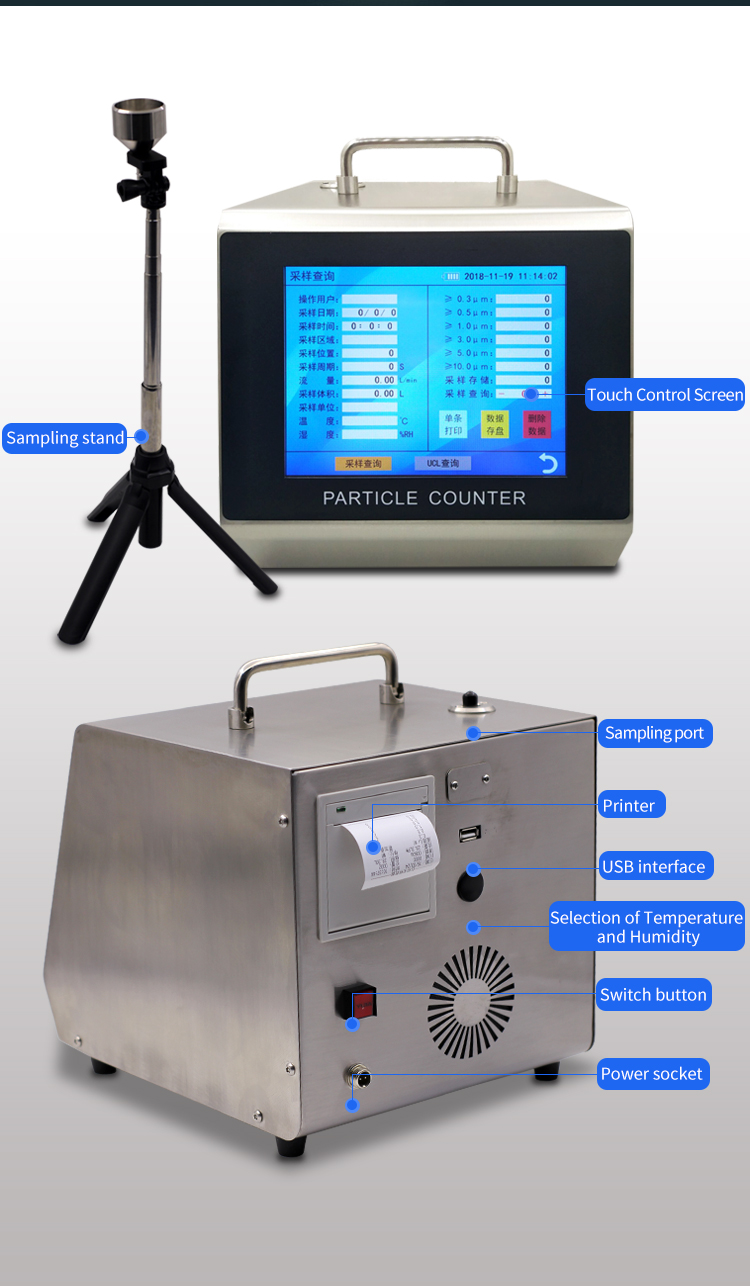

Large Flow Rate (100L/min) Y09-5100 Laser  Particle Counter  is used to measure the volume of air inside the clean environment of dust particles in size and number, can be directly detected cleanliness class A area, B-class area clean environment. Y09-5100 laser particle counter using a semiconductor laser light source, a large touch-screen display, small size, light weight, high detection precision, functionality simple operation, microprocessor control, storage, printing the measurement results, the test environment is very clean convenient. In addition, special software can be downloaded via computer to store data. Our products are widely used in medicine, optical, chemical, food, cosmetics, e-health, biological products, aerospace and other sectors.

Detailed parameters:

Outside Dim	268*192*292(Wide*High*Deep)
Display	Touch screen (Lcd)
Weight	7.5 Kg
Max.Consumption	80W
Power Source	DC16.8V(Built-in Lithium Battery)
Size Channels	0.5,    1,    3,        5,     10,     25μm
Calculation	95% UCL calculation of particle concentration can be displayed directly (particles / cubic meter, grain / cubic feet)
Flow Rate	100L/min (Imported Pump)
Sample Time	0~999999s(Selectable)
Zero Count	≤10min
Location Labels	0~9999
Printer	(Built-in Thermal Printer)
Alarm	ISO / own (Class)
Date Storage	20000 Samples/300Samples of UCL (With PC Software)
Date Output	USB Port
Light Source	Laser Diode ( 30000 hours mean time between failures)
Maximum Rated Particle Concentration	35000particles/L
Operating Time	3 hours
Environmental	Temperature:10~35degrees celsius Humidity:20~75percent RH  Atmosphere Pressure:86~106Kpa
