PRODUCT:

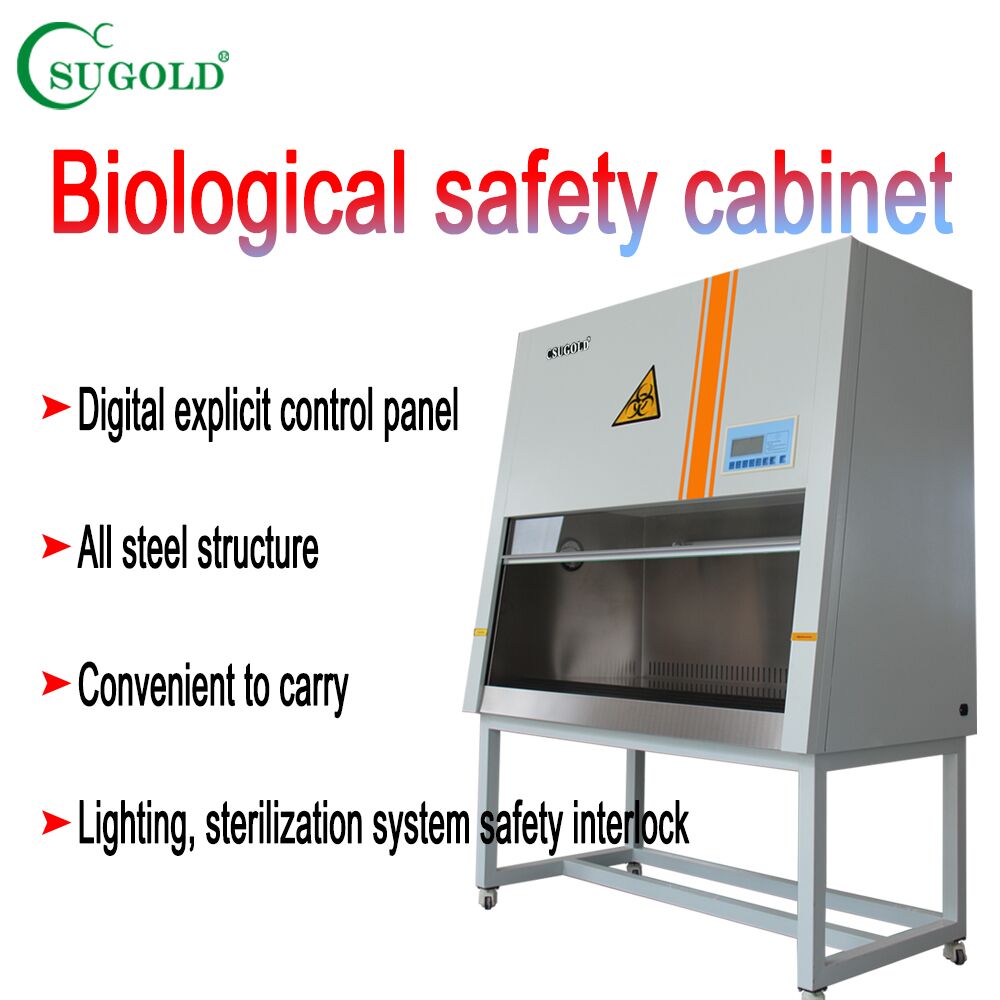

All steel 30% Air Exhaust safty cabinet BSC-1000IIA2 biosafety cabinet
PRODUCT:

BSC-A2 Bio-safety Cabinet

Product Characteristics

1. Air curtain isolation design prevents internal and external cross contamination, with 30% air flow discharged and 70% internal circulation, negative pressure vertical flow, and no need to install pipelines.



2. The front glass can be moved up and down allows for arbitrary positioning which is easy to operate, and complete closure for sterilization. The positioning height limit alarm prompts.



3. The power output socket in the work area is equipped with waterproof sockets and sewage outlets, providing great convenience for operators



4. HEPA filter is installed at the exhaust area to control emission pollution



5. The working area is made of high-quality 304 stainless steel, which is smooth, seamless, and has no dead corners. It can be easily and thoroughly disinfected to prevent corrosion and disinfectant erosion.



6. Controlled by an LCD panel with built-in UV light protection device, it can only be opened when the safety door is closed.



7. Equipped with DOP test port and built-in differential pressure gauge.



8. 10 ° inclination angle, in line with human body design concepts.



Technical Parameters

Model

Spec.

BSC-700IIA2-EP

BSC-1000IIA2

compact

BSC-1000IIA2

BSC-1300IIA2

BSC-1600IIA2

Cleanliness

HEPA: ISO 5 (Class100)

Number of colonies

0.5pcs/dish·hour (Φ90mm culture plate)

Wind speed

Average suction wind speed: 0.55±0.025m/s

Average descending wind speed: 0.3±0.025m/s

Filtration Efficiency

HEPA of borosilicate glass fiber material: 99.995%, @0.3μm

Noise

≤65dB(A)

Vibration half peak

5μm

Power

AC single phase 220V/50Hz

Maximum power consumption

600W

600W

800W

1000W

1200W

Weight

140KG

170KG

210KG

250KG

270KG

Internal size (mm)

W1×D1×H1

600×570×520

840×650×620

1040×650×620

1340×650×620

1640×650×620

External size (mm)

W×D×H

760×700×1230

1000×800×2100

1200×800×2100

1500×800×2100

1800×800×2100

HEPA filter specifications and quantity

560×440×50×

380×380×50×

780×490×50×

520×380×70×

980×490×50×

520×380×70×

1280×490×50×

820×380×70×

1580×490×50×

1120×380×70×

LED/UV lamp specifications and quantity

8W×①/20W×①

8W×②/20W×①

12W×/20W×

20W×/30W×

20W×/40W×
