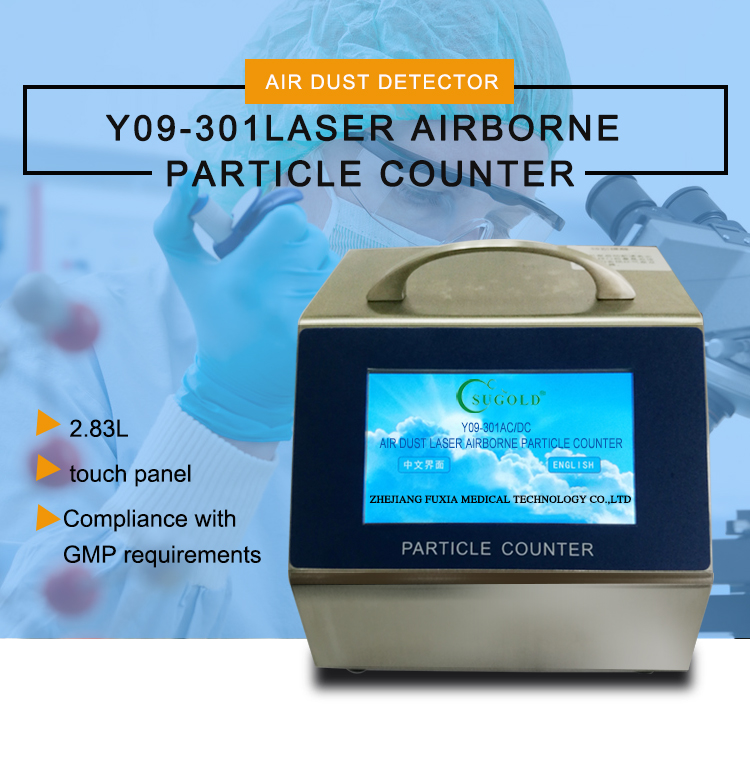

  • PRODUCT:Y09-301AC type Laser airborne particle counter for clean room

  • PRODUCT:Y09-301AC
  • PRODUCT:SUGOLD
  • PRODUCT WORD :
你添加了1件商品 查看购物车
PRODUCT:
Y09-301AC type Laser airborne particle counter for clean room The instrument is widely used in the fields of micro-electronics, precision machinery, optics, pharmacy and sanitation, biology, food and beverage, aerospace and so on. Y09-301AC type Laser airborne particle counter for clean room
PRODUCT:

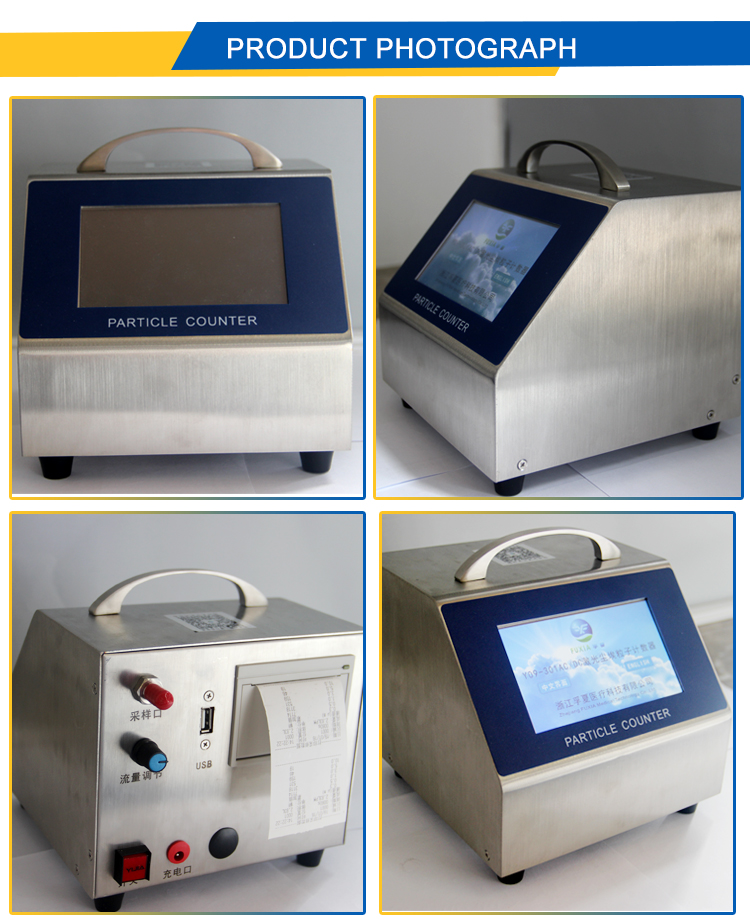

Y09-301AC Y09-301(AC/DC)  Airborne Particle Counter

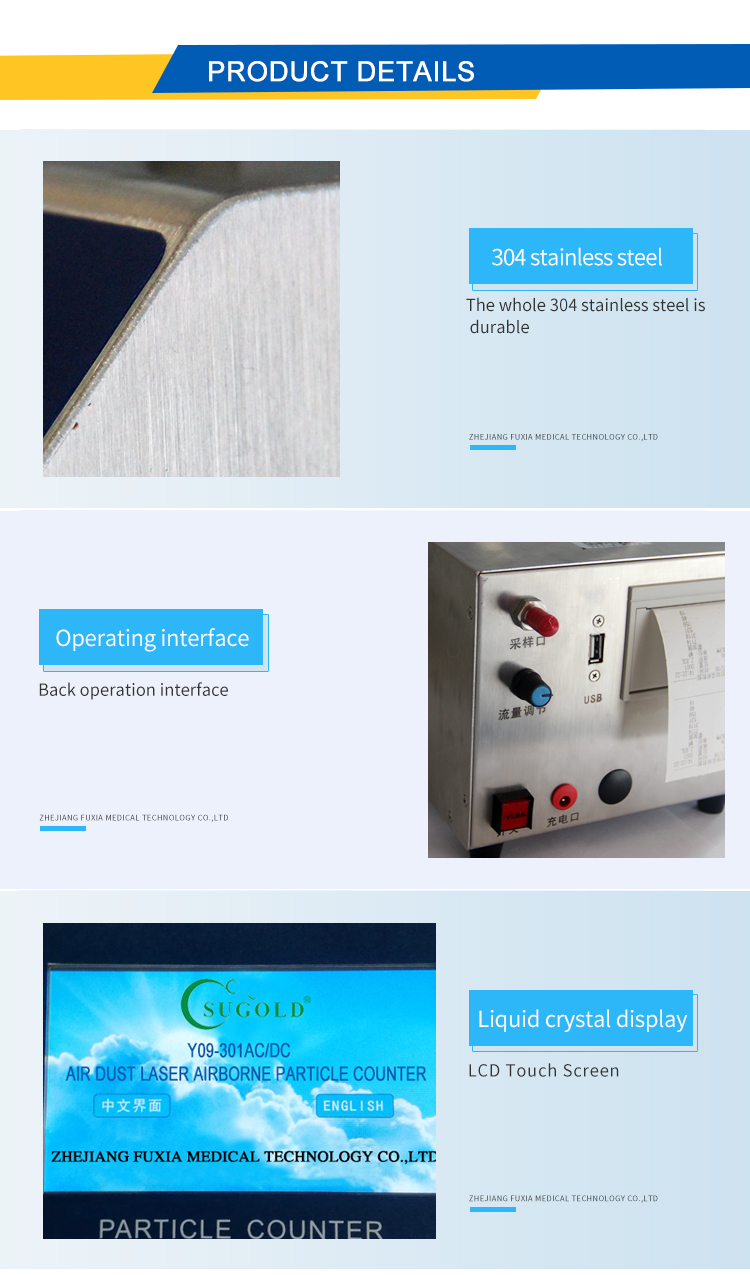

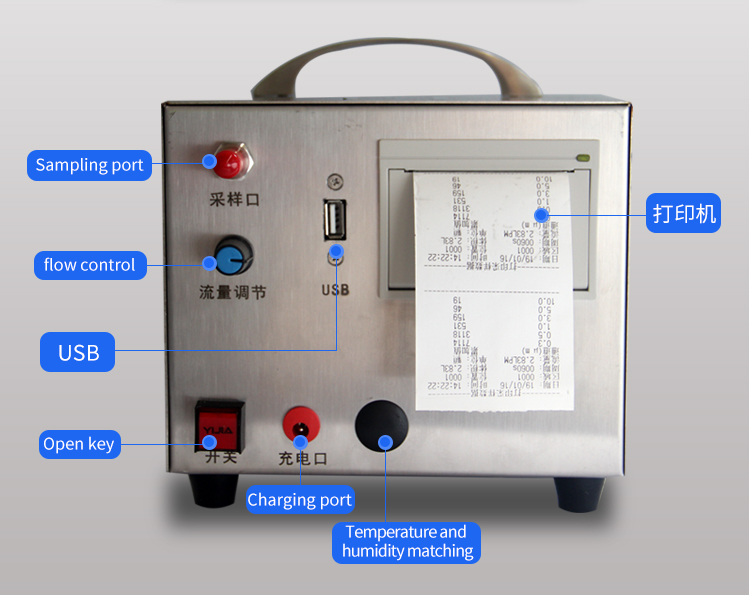

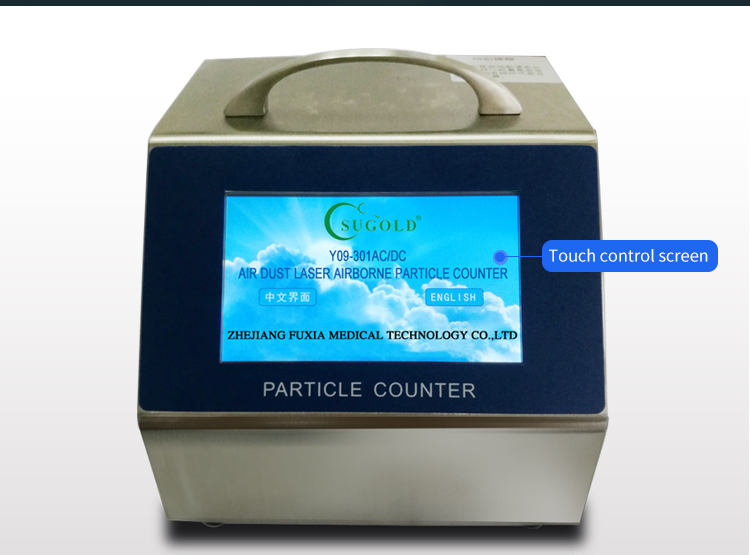

 is used to detect the particles in the cleanroom. It can measure the class 100 to 300 k environment. The instrument uses the laser diode as the light source, LCD-panel displays, six different size ranges simul taneously. The built-in printer can print count results. The counter can store 1000 samples data. Software creates data files for viewing or export to EXCEL sheet to computer.The  instrument is widely used in the fields of micro-electronics, precision machinery, optics, pharmacy and sanitation, biology, food and beverage, aerospace and so on.



Specifications

Display

                                                LCD

Weight

                                               4.5Kg

Max. Consumption

                                                10W

Power Source

                                       AC 220V ± 10%,50Hz

Size Channels

                              0.3, 0.5, 1, 3, 5, 10 μm

Flow Rate

                          2.83L/min (Imported Pump)

Sample Time

                               1---10min (Selectable)

Zero Count &le

                                            10min

Location Labels

                                             0-999

Printer

                               Built-in Thermal Printer

Alarm

                              100, 1000, 10000 Class

Data Storage

                         1000 Samples (With PC Software)

Light Source

Laser Diode (30, 000 hours Mean Time Between Failures)

Maximum Rated Particle Concentration

                                  35000 particles/L ( μm )

Operating Time

                                               8 hours

Environmental Temperature

                     10degrees celsius-35degrees celsius

Humidity

                                          20%-75%RH

Atmosphere Pressure

                                         86Kpa-106Kpa

Optional

                                          PC Software
