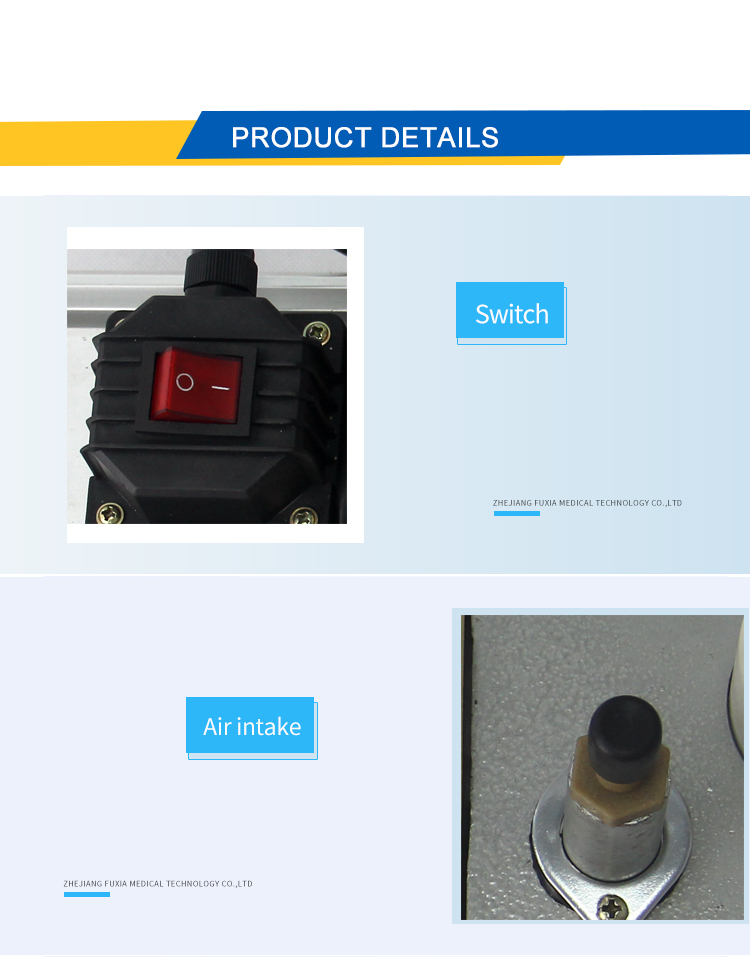

PRODUCT DETAILS
  • PRODUCT:Rotary Vane Vacuum Pump

  • PRODUCT:XZ series
  • PRODUCT:SUGOLD
  • PRODUCT WORD :
你添加了1件商品 查看购物车
PRODUCT:

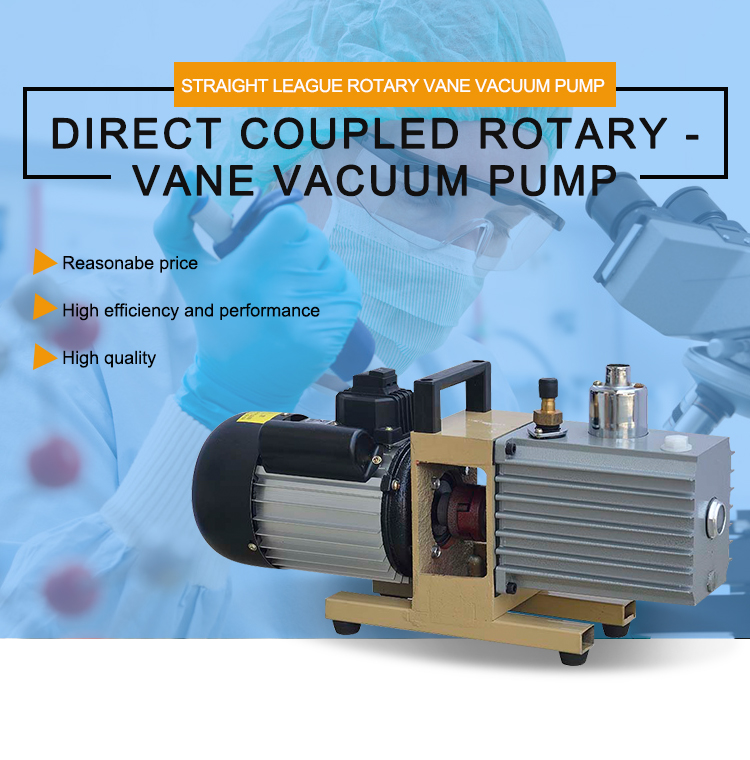

Rotary Vane Vacuum Pump Rotary Vane Vacuum Pump 1.reasonable price 2. high efficiency and performance; 3. high quality ◊ Application Rotary Vane Vacuum Pump
PRODUCT:

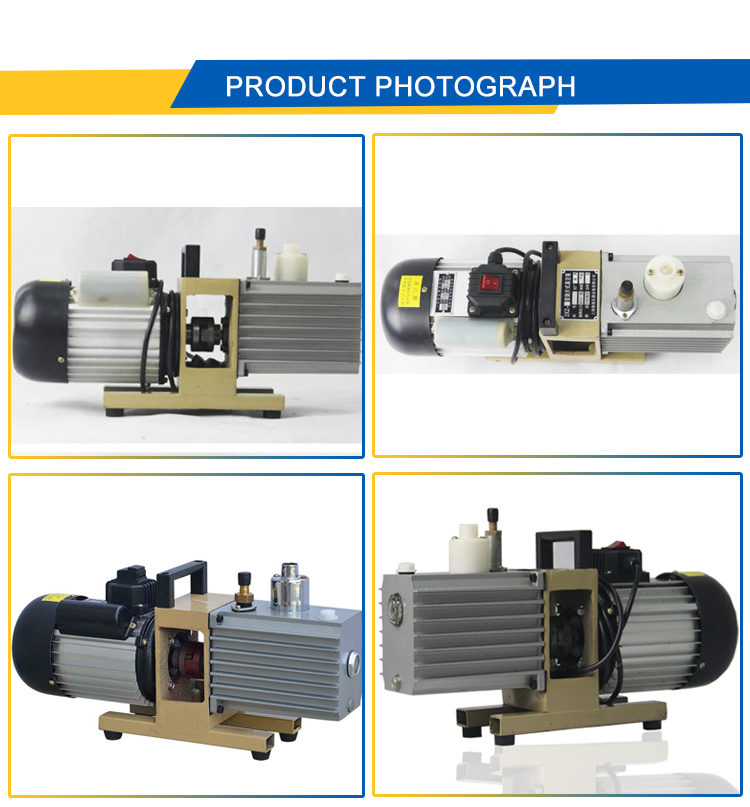

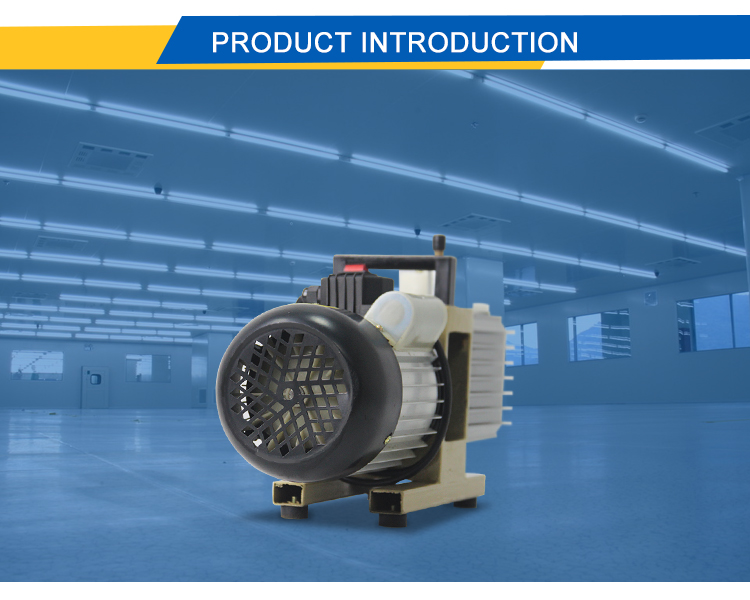

Rotary Vane Vacuum Pump

This series of pumps are used for pumping air in sealed vessels. It can be used alone, also can be used as the forepump, diffusion pump, and molecular pump.

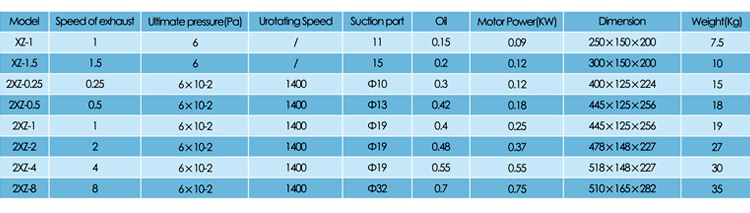

◊ Technical data
Model speed of
exhaust
Ultimate pressure(Pa) Rotating Speed suction port Oil Motor Power
(KW)
Dimension WeightKg
XZ-1 1 6 / 11 0.15 0.09 250*150*200 7.5
XZ-1.5 1.5 6 / 15 0.2 0.12 300*150*200 10
2XZ-0.25 0.25 6×10-2 1400 Φ10 0.3   0.12 400*125*224 15
2XZ-0.5 0.5 6×10-2 1400 Φ13 0.42 0.18 445*125*256 18
2XZ-1 1 6×10-2 1400 Φ19 0.4   0.25 445*125*256 19
2XZ-2 2 6×10-2 1400 Φ19 0.48 0.37 478*148*227 27
2XZ-4 4   6×10-2 1400 Φ19   0.55 0.55 518*148*227 30
2XZ-8 8 6×10-2 1400 Φ32 0.7 0.75 510*165*282 35
