PRODUCT DETAILS
  • PRODUCT:FLB-2400 Four Person-Double Side Automatic Blowing Air Shower

  • PRODUCT:FLB-2400
  • PRODUCT:SUGOLD
  • PRODUCT WORD :
你添加了1件商品 查看购物车
PRODUCT:
FLB-2400 Four Person-Double Side Automatic Blowing Air shower Air shower series product is a kind of partial purifying equipment of universality. With novel structure, beautiful appearance, reliable running, low consumption, energy saving and convenient maintenance, it is widely used in electron, machinery, medicine, color packing.FLB-2400 Four Person-Double Side Automatic Blowing Air Shower
PRODUCT:

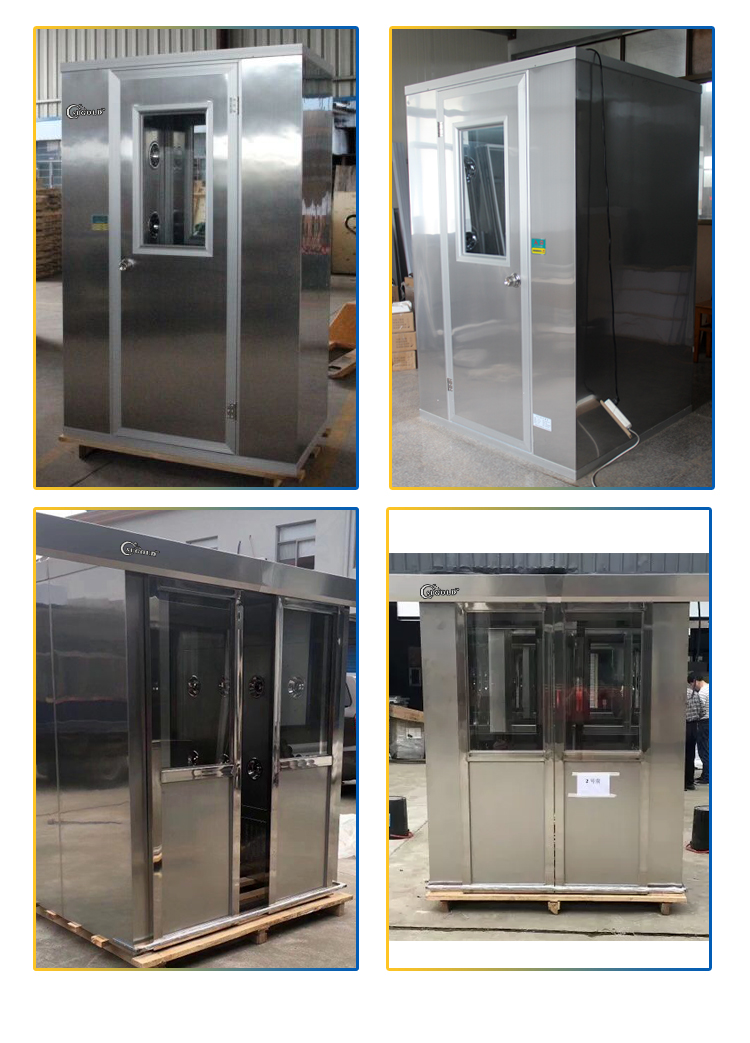

 FLB-2400 Four Person-Double Side Automatic Blowing Air shower

FLB-2400 Four person-Double side Air shower

      Air shower series product is a kind of partial purifying equipment of strong universality. With novel structure, beautiful appearance, reliable running, low consumption, energy saving and convenient maintenance, it is widely used in electron, machinery, medicine, foodstuff, color packing, brewage, biological engineering and other industry and scientific research fields. It is usually installed between clean room and unclean room. When people and goods enter into clean room, they have to be blown at first. The blown clean air can get rid of dust bough by people and goods and can effectively prevent dust source from entering into clean area.
Principle

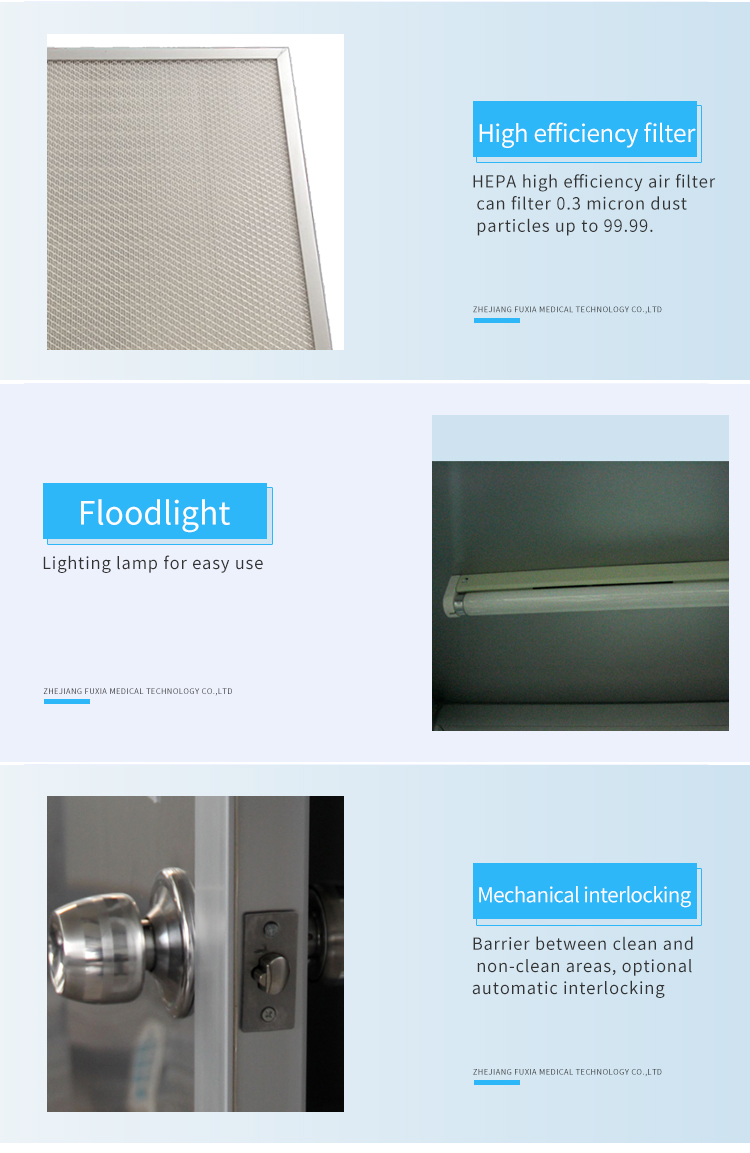

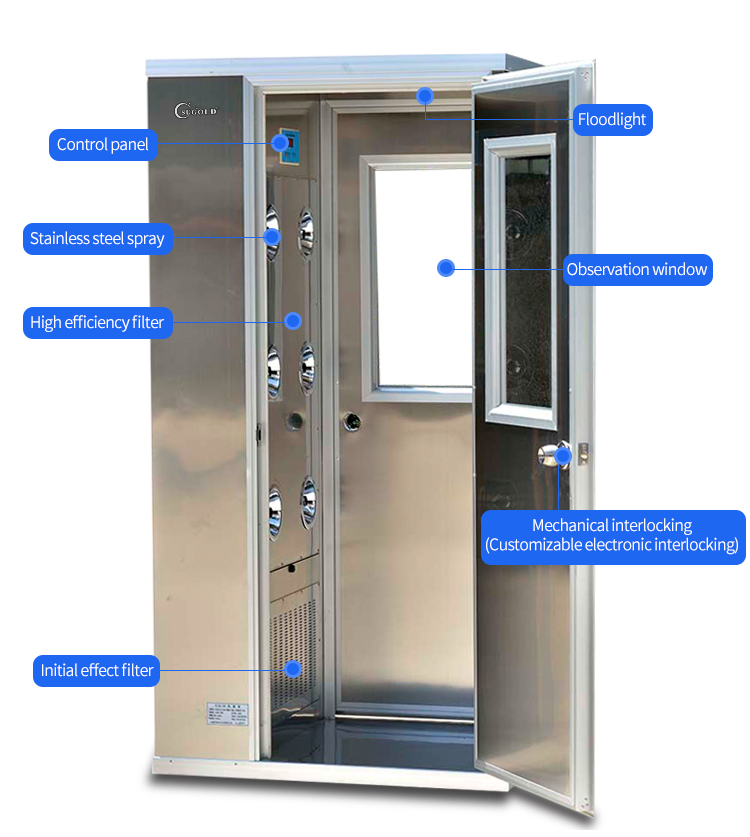

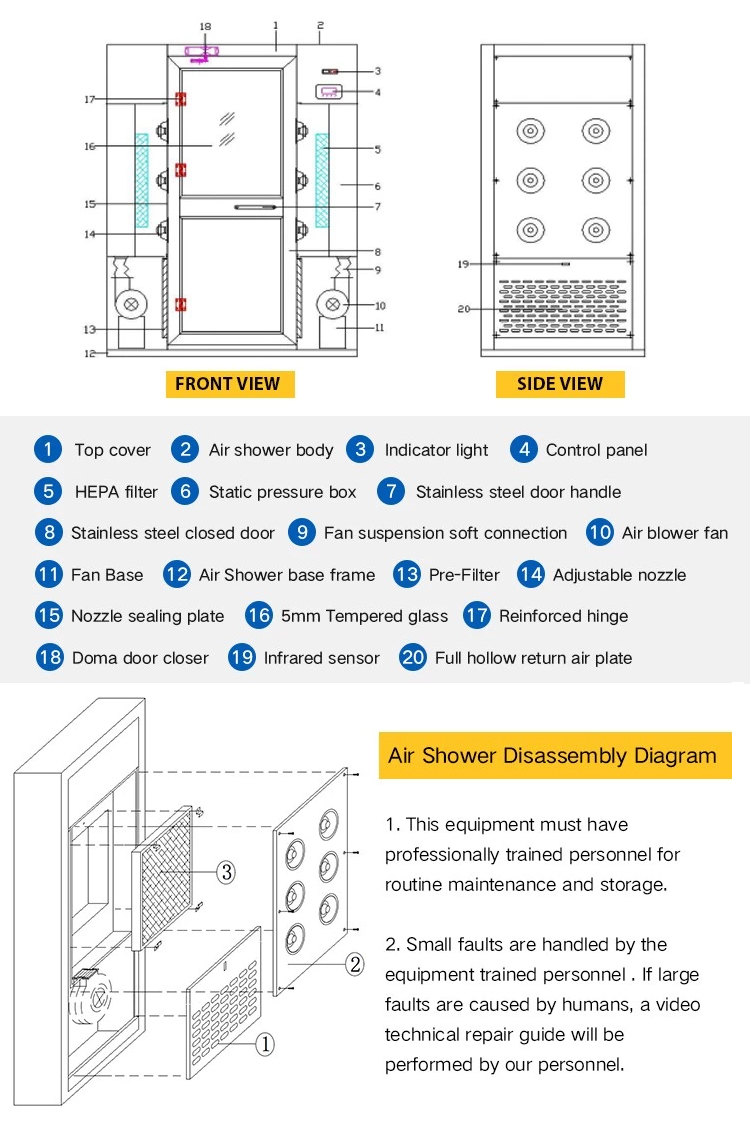

The air inside of air shower is firstly filtered under the action of fan and enters into static pressure tank. After filtered with high-efficiency air filter, clean air is jet out at high speed from the nozzle of air shower. The nozzle angel is adjustable. It can effectively blow out dust attached on people and goods’ surface. The blown dust enters into primary-efficiency air filter again, circulating so and reaching to the aim of air shower.

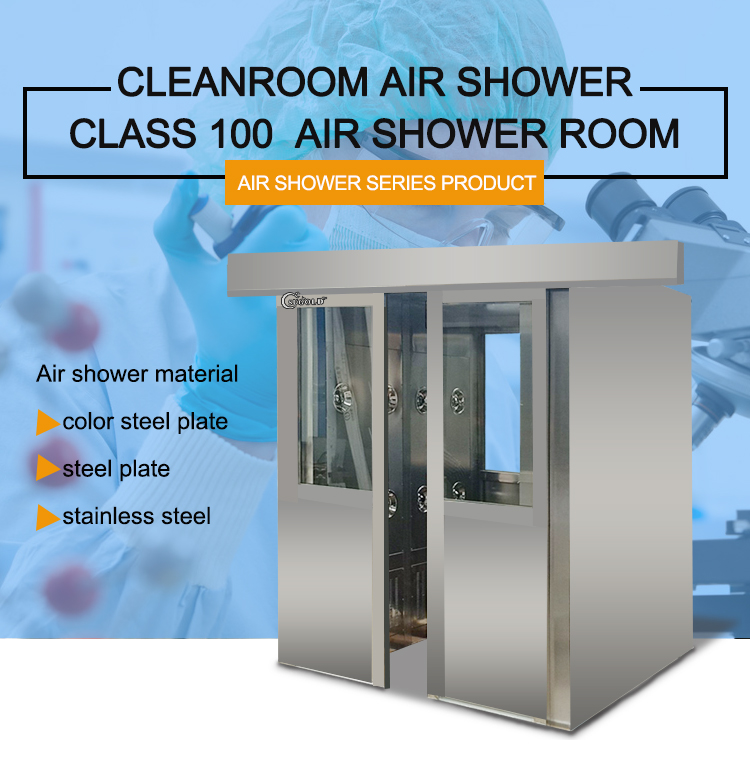

Air shower material
1. color steel plate 2. steel plate 3. stainless steel

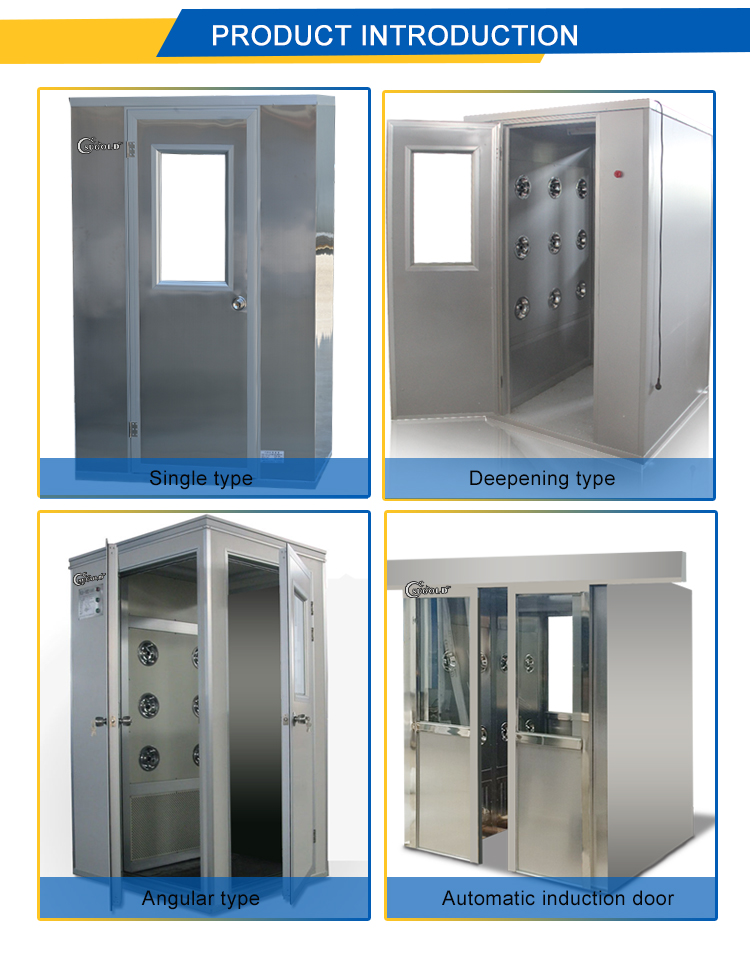

Air shower type
people shower

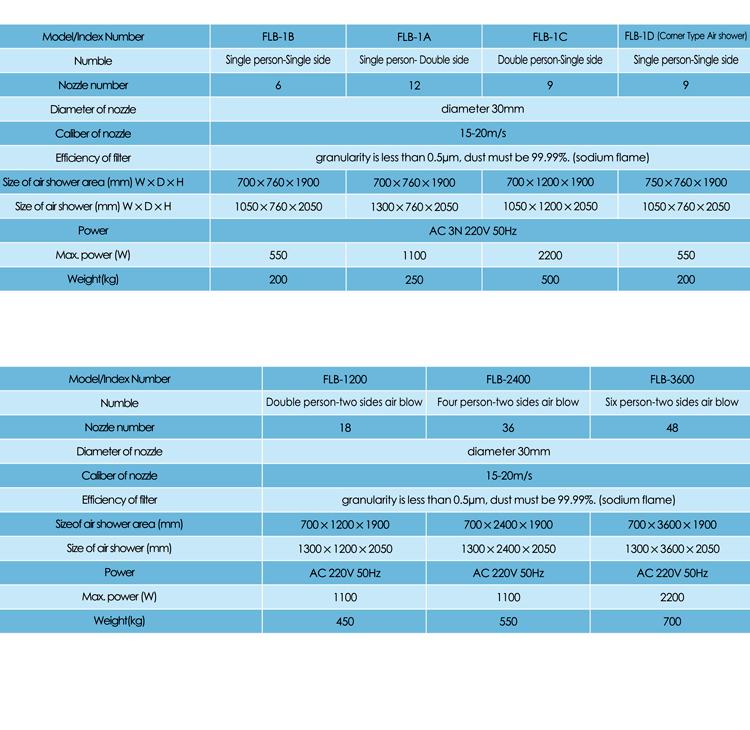

Model/Index Number

FLB-1200

FLB-2400

FLB-3600

Numble

Double -Double

Four-double

Six-Double

Nozzle number

18

36

48

Diameter of nozzle

diameter 30mm

Caliber of nozzle

15-20m/s

Efficiency of filter

granularity is less than 0.5μm, dust must be 99.99%. (sodium flame)

Sizeof air shower area (mm)

700*1200*1900

700*2400*1900

700*3600*1900

Size of air shower (mm)

1300*1200*2050

1300*2400*2050

1300*3600*2050

Power

AC 220V 50Hz

Max. power (W)

1100

1100

2200

Weight(kg)

450

550

700
