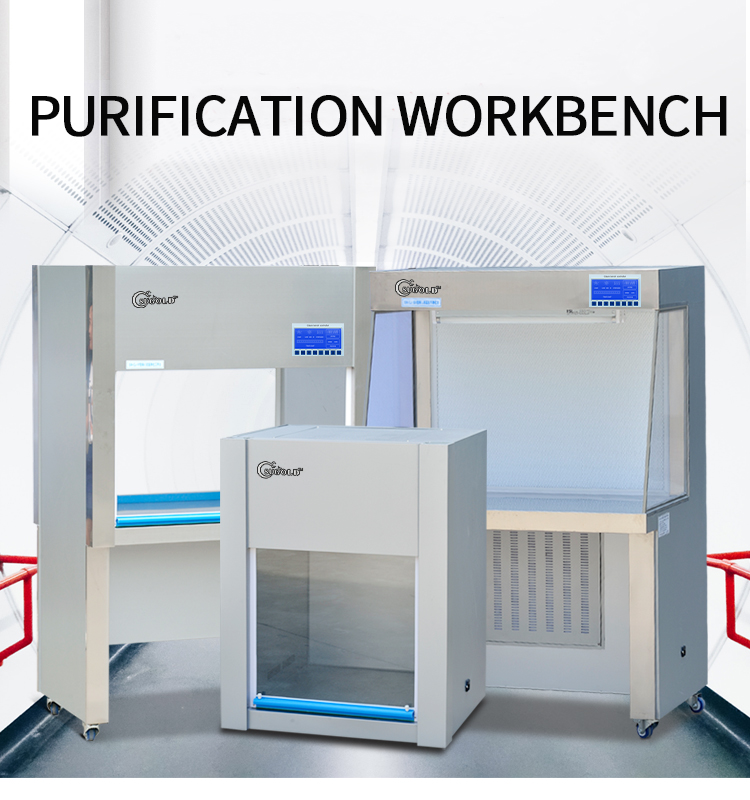

  • PRODUCT:SW-CJ-1C Horizontal air supply clean bench

  • PRODUCT:SW-CJ-1C
  • PRODUCT:SUGOLD
  • PRODUCT WORD :
你添加了1件商品 查看购物车
PRODUCT:
Horizontal air supply clean bench 1. Clean grade-- class 100 2. ISO 9001 3. Laminar clean bench 4. Cheap price 5. Horizontal Air flow clean bench
PRODUCT:

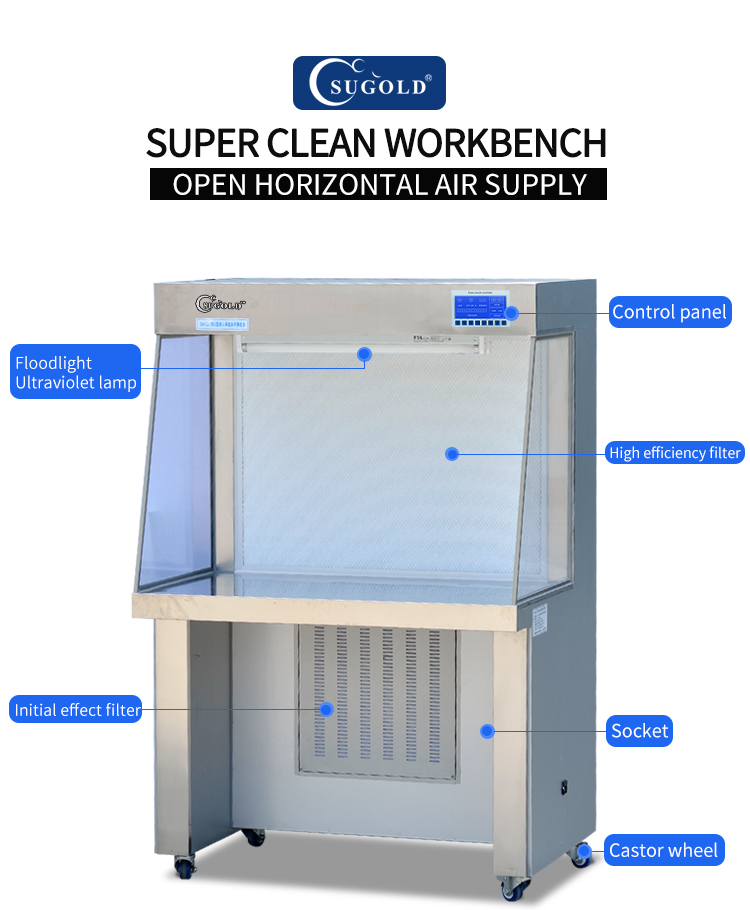

SW-CJ-1C Double-person single-side (horizontal air supply) clean bench

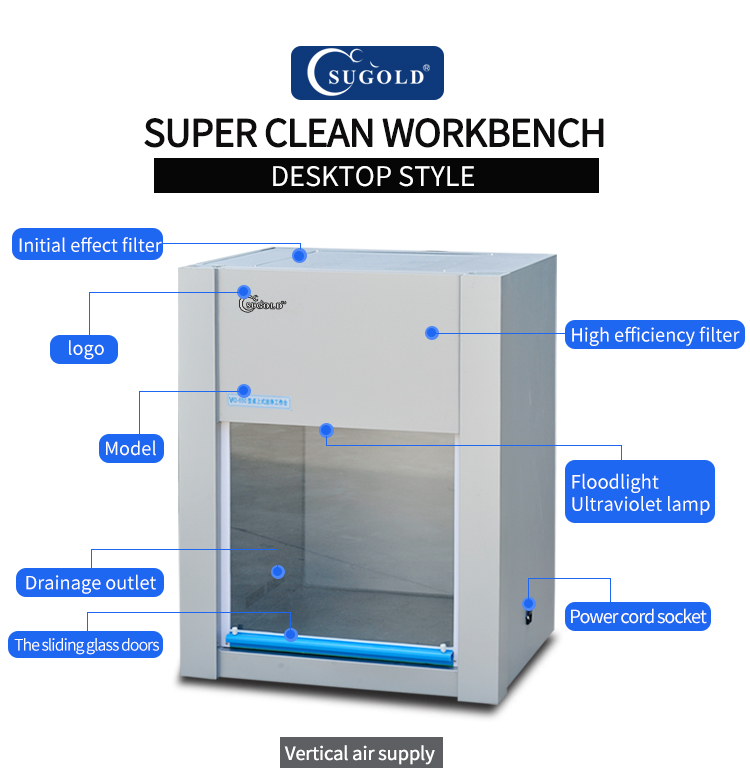

product features

1. Adopting arbitrary positioning sliding door system

2. The shell is welded by cold-rolled plates, the surface is electrostatically sprayed, and the work surface is SUS304 brushed stainless steel, which is corrosion-resistant and easy to clean.

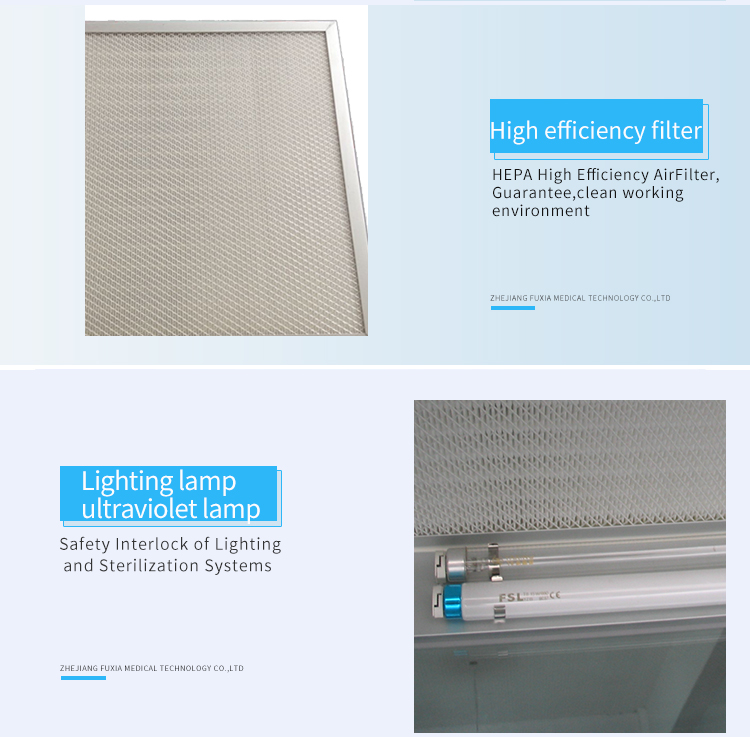

3. The lighting and sterilization systems are interlocked safely, and have the timing function of the ultraviolet lamp (except 1BU, 1CU)

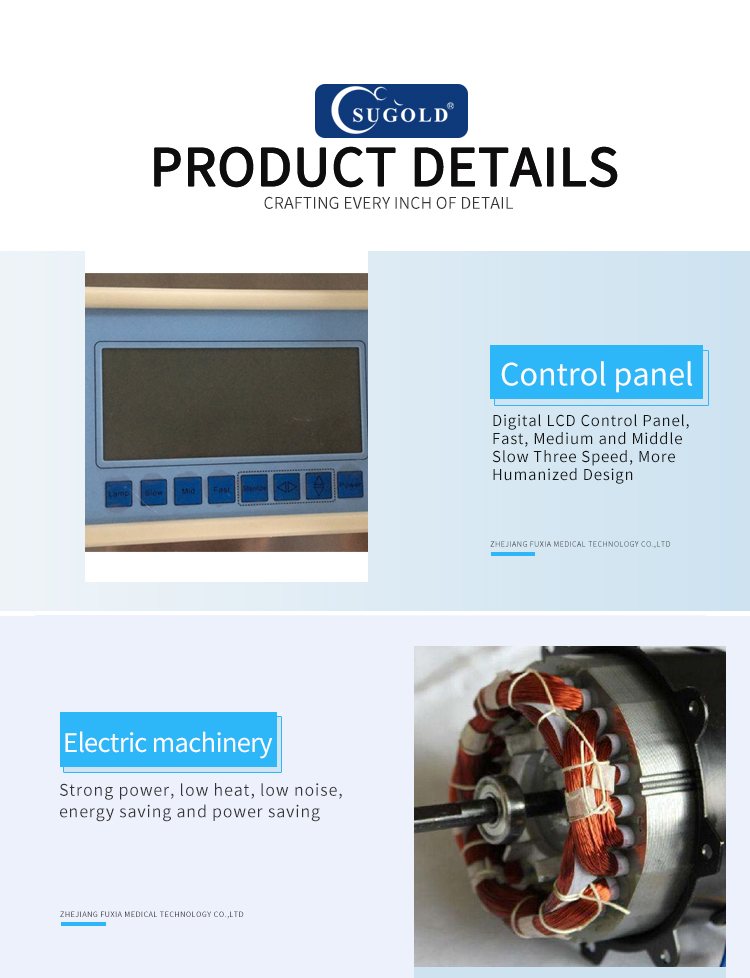

4. Digital display LCD control interface, more user-friendly design

5. The vertical quasi-closed table top and the formation of a downward flow air curtain in the operation room can effectively prevent the input of external air and the operation area is clean

6. Equipped with HEPA high-efficiency air filter, with primary filter for preliminary filtration, which can effectively extend the high-efficiency filter

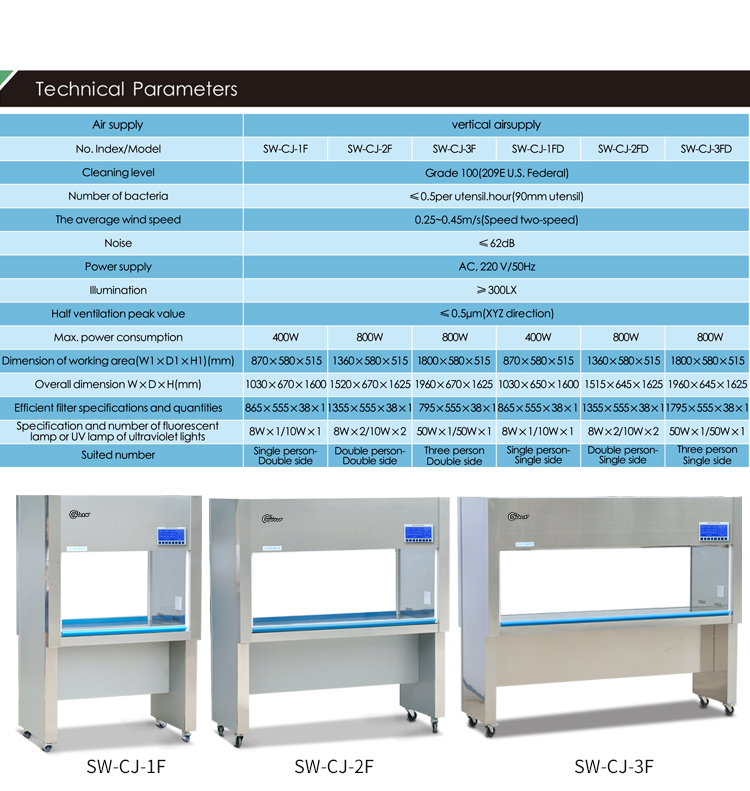

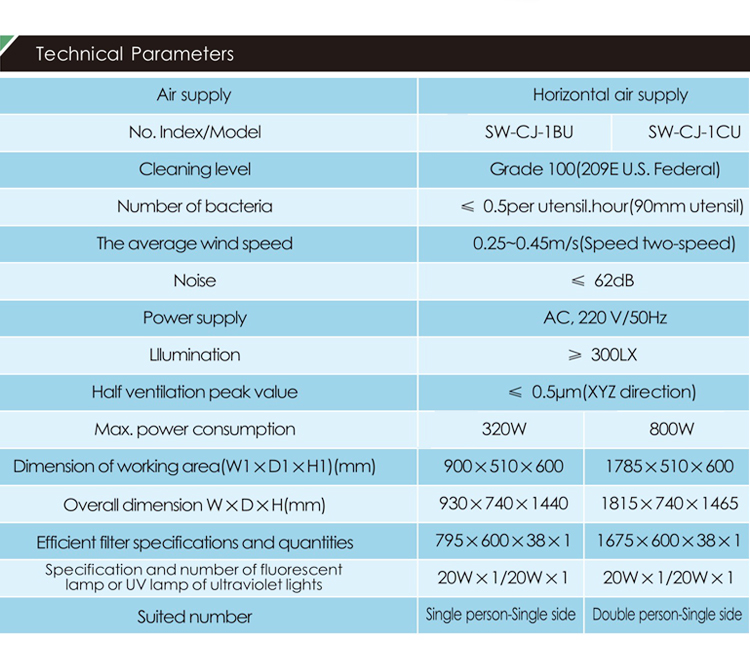

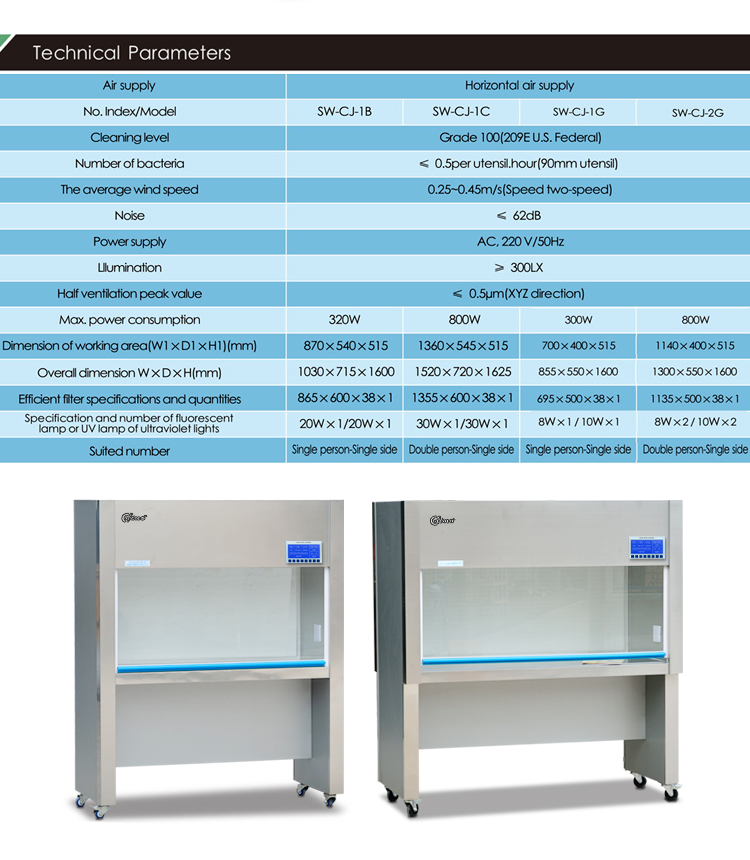

Technical Parameters

Model

parameter

SW-CJ-1G

SW-CJ-2G

SW-CJ-1B

SW-CJ-1C

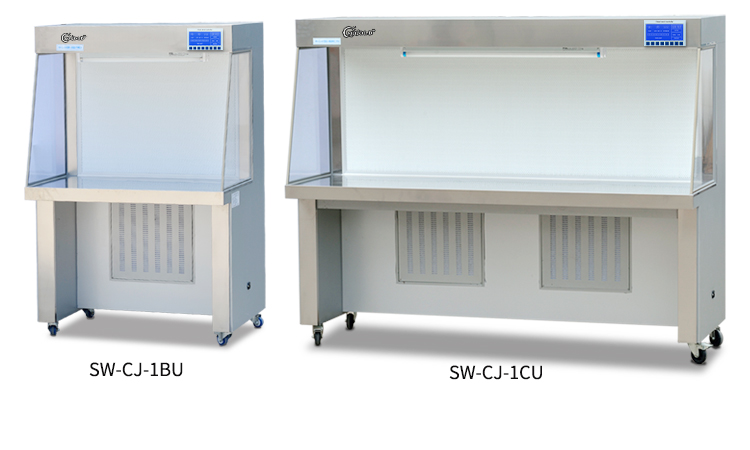

SW-CJ-1BU



SW-CJ-1CU

Cleanliness level

Class 100@0.5μM (US Federal 209E)

Number of colonies

0.5pcs/dish·hour (Φ90mm culture plate)

average wind speed

0.250.45m/s

noise

62dBA

Vibration half peak

5μMxyz direction

Illuminance

300Lx

power supply

AC single phase 220V/50Hz

Maximum power

100W

500W

490W

640W

490W

640W

weight

80Kg

110kg

90kg

140kg

90kg

160kg

Work area size

700×410×580

1150××410×580

880×510×580

1370×510×580

900×510×600

1770×510×600

W1×D1×H1

860×590×1600

1310×590×1600

1040×690×1600

1530×690×1600

930×740×1440

1800×740×1440

Dimensions

Single/Single

Double single

Single/Single

Double single

Single/Single

Double single

High efficiency filter specification and quantity

680×565×50

1130×565×50

850×565×50

1350×565×50

830×560×50

1700×560×50

Specification and quantity of fluorescent lamp/ultraviolet lamp

12W×1

20W×1

12W×1

30W×1

12W×1

20W×1

20W×1

36W×1

12W×1

20W×1

20W×1

36W×1
