PRODUCT:SW-CJ-1B Laminar Air Flow Clean Bench

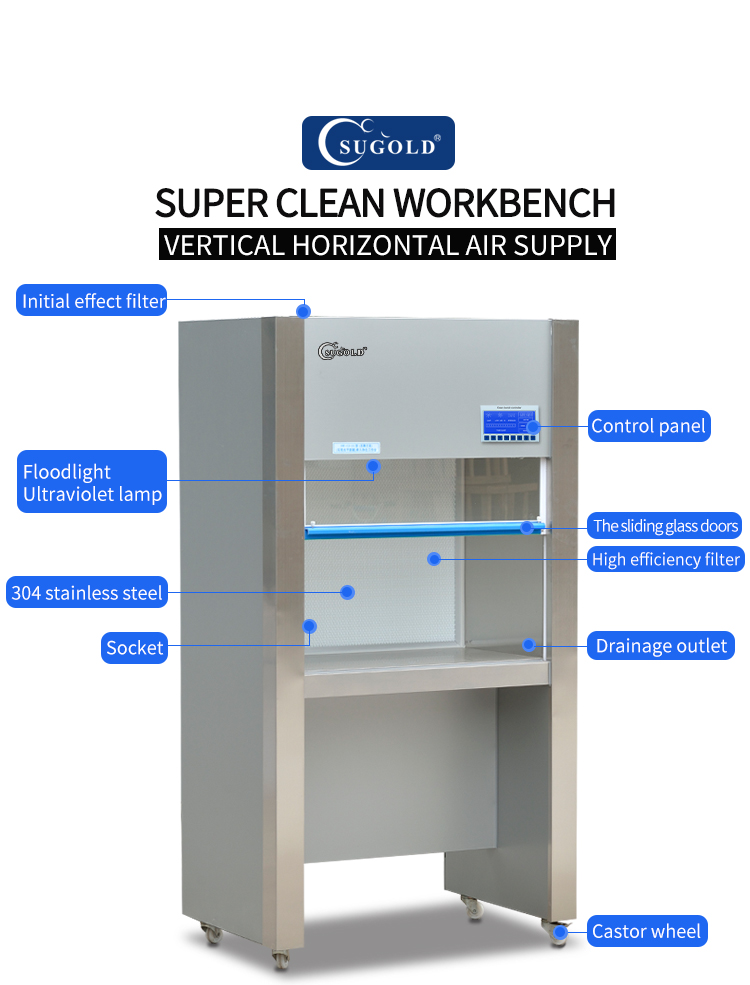

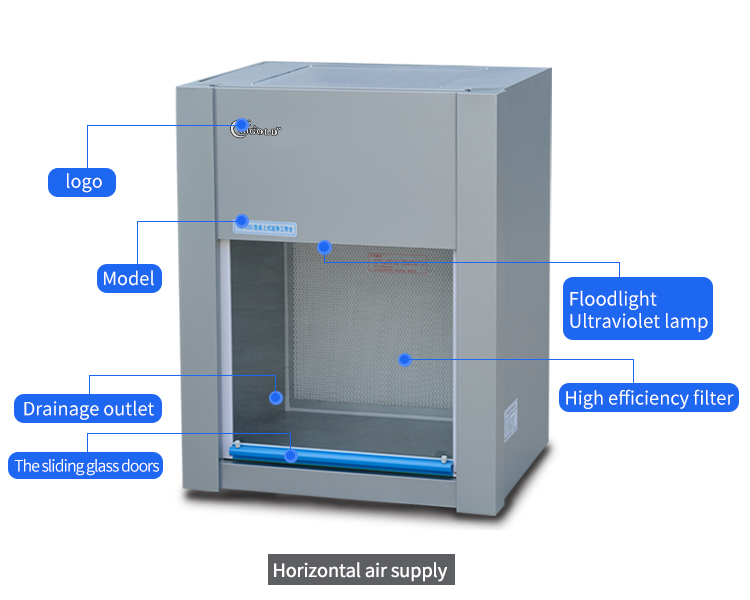

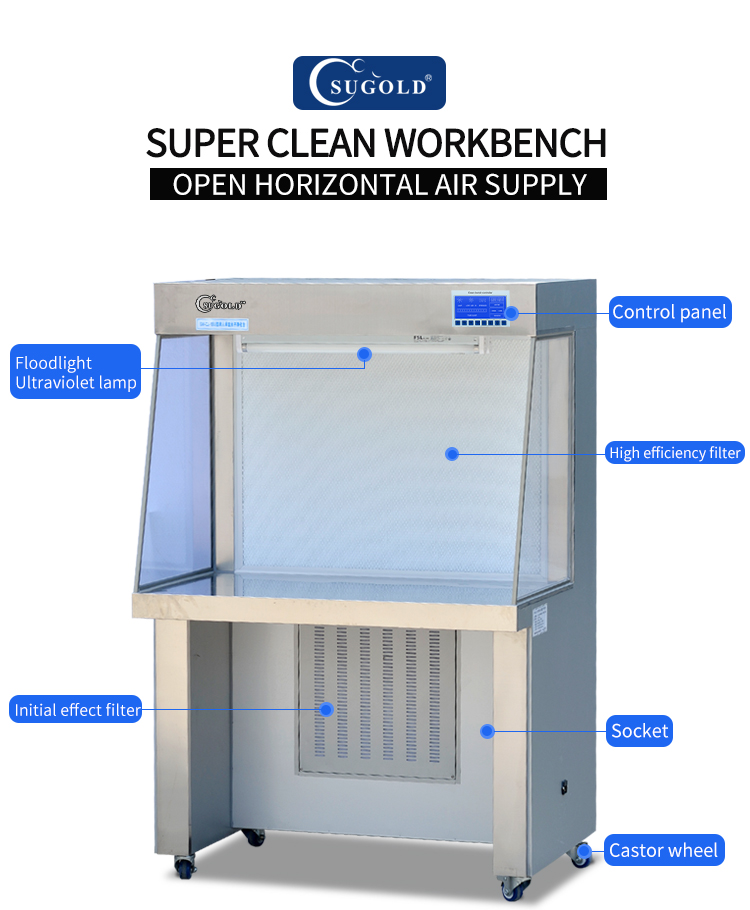

SW-CJ-1B single-person single-side (horizontal air supply) clean bench

product features

1. Adopting arbitrary positioning sliding door system

2. The shell is welded by cold-rolled plates, the surface is electrostatically sprayed, and the work surface is SUS304 brushed stainless steel, which is corrosion-resistant and easy to clean.

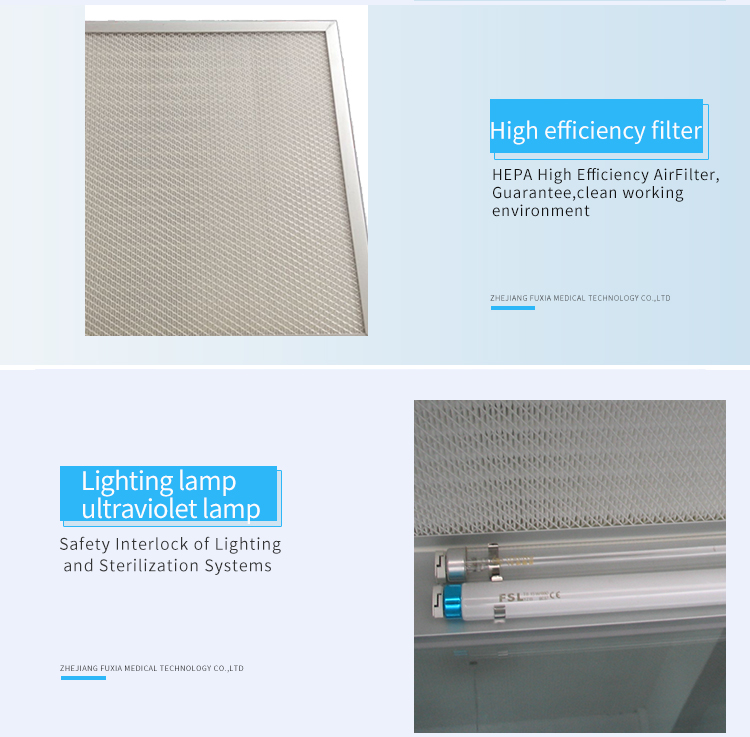

3. The lighting and sterilization systems are interlocked safely, and have the timing function of the ultraviolet lamp (except 1BU, 1CU)

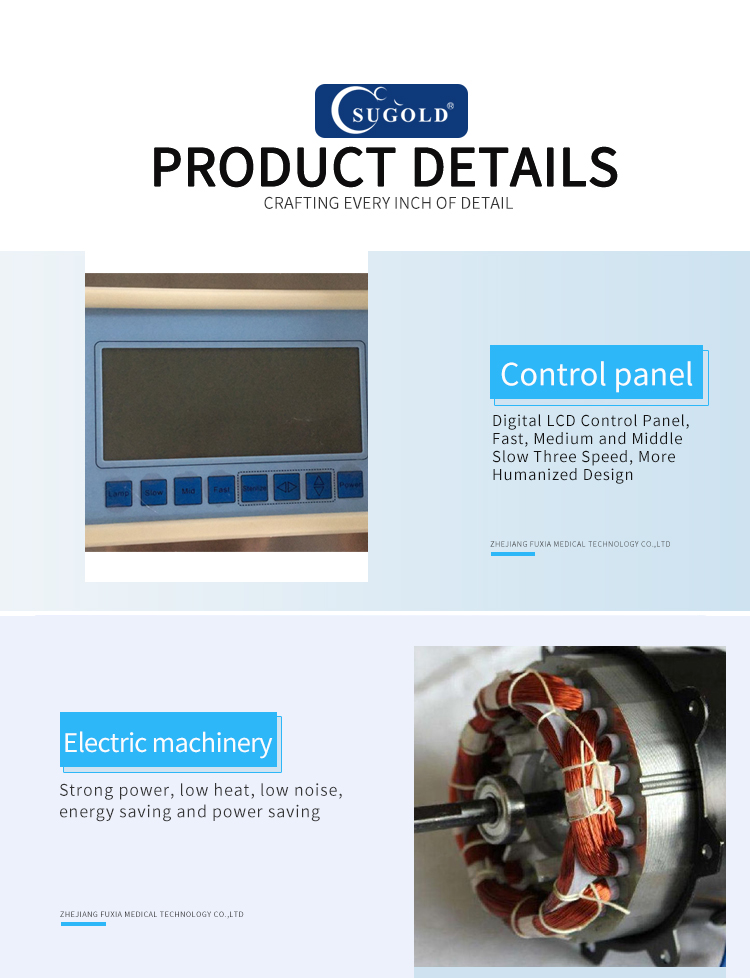

4. Digital display LCD control interface, more user-friendly design

5. The vertical quasi-closed table top and the formation of a downward flow air curtain in the operation room can effectively prevent the input of external air and the operation area is clean

6. Equipped with HEPA high-efficiency air filter, with primary filter for preliminary filtration, which can effectively extend the high-efficiency filter

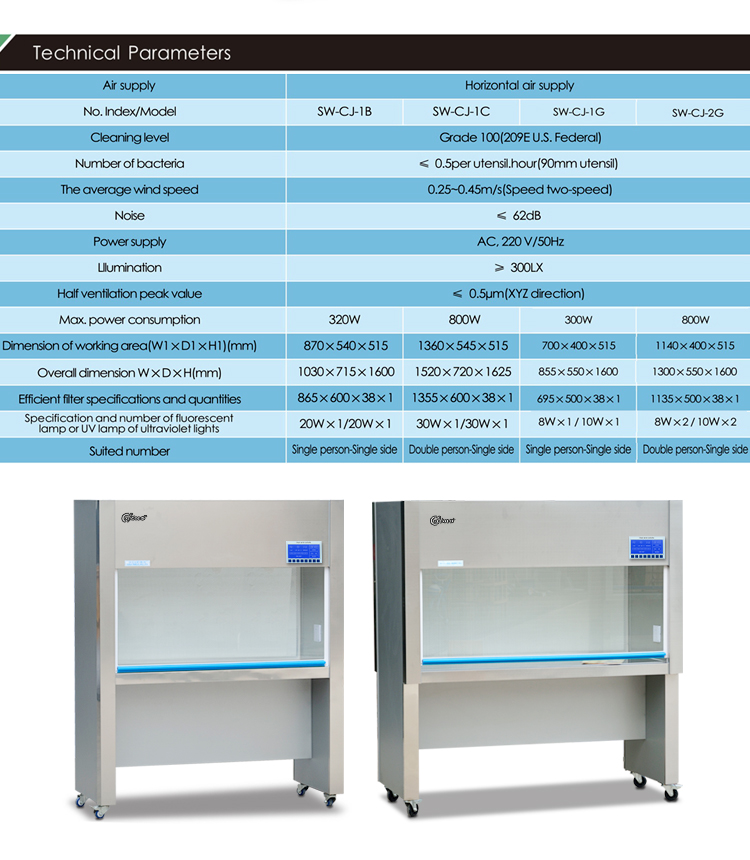

Technical Parameters

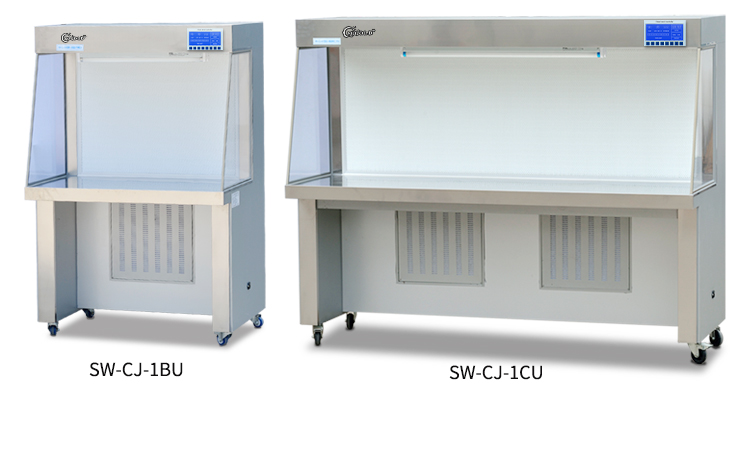

Model parameter	SW-CJ-1G	SW-CJ-2G	SW-CJ-1B	SW-CJ-1C	SW-CJ-1BU	SW-CJ-1CU
Cleanliness level	Class 100@≥0.5μM (US Federal 209E)
Number of colonies	≤0.5pcs/dish·hour (Φ90mm culture plate)
average wind speed	0.25～0.45m/s
noise	≤62dB（A）
Vibration half peak	≤0. 5μM（x、y、z direction）
Illuminance	≥300Lx
power supply	AC single phase 220V/50Hz
Maximum power	100W	500W	490W	640W	490W	640W
weight	80Kg	110kg	90kg	140kg	90kg	160kg
Work area size	700×410×580	1150××410×580	880×510×580	1370×510×580	900×510×600	1770×510×600
W1×D1×H1	860×590×1600	1310×590×1600	1040×690×1600	1530×690×1600	930×740×1440	1800×740×1440
Dimensions	Single/Single	Double single	Single/Single	Double single	Single/Single	Double single
High efficiency filter specification and quantity	680×565×50	1130×565×50	850×565×50	1350×565×50	830×560×50	1700×560×50
Specification and quantity of fluorescent lamp/ultraviolet lamp	12W×1 20W×1	12W×1 30W×1	12W×1 20W×1	20W×1 36W×1	12W×1 20W×1	20W×1 36W×1
