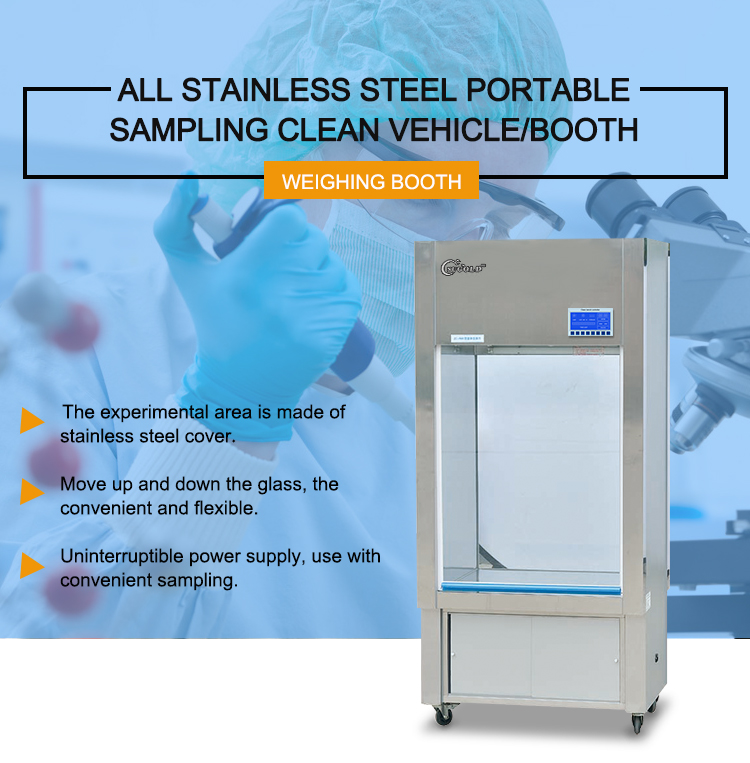

JC-900 series clean sampling vehicle
JC series clean sampling vehicle is used for sampling raw or assistant material of medicament and preparation (except germfree preparation). Our sampling vehicle reaches to ten thousand level of cleanness in accordance with GMP standard. Besides, electric components comply with GB1497—85 (electric safety standard) and GB—19l(packing standard).
Method of use
Move clean sampling vehicle to the place needing sampling. Fix it and connect it to power supply. Turn power supply on and turn fan on.
Regulate voltage to right range (usually220V); put sampling barrel in it after clean sampling vehicle works for 15min.
Take sampling barrel away after sampling. Turn off fan and shut off power supply. Move sampling vehicle to original place.
Model |
JC-900 |
JC-1200 |
Nominal working condition |
temperature 5°C~40°C |
|
Relative humidity |
≤80% |
|
Atmospheric pressure |
86~106KPa |
|
Appearance |
Sampling vehicle box body is made from stainless steel or steel plate. The decorative curtain is smooth, vertical and not damaged. |
|
Truckle |
flexible and reliable |
|
Illumination |
Average illumination can not be less than 86~106KPa |
|
Purifying efficiency |
ten thousand level or hundred thousand level |
|
Average wind speed |
0.4±20%(adjustable) |
|
Noise |
not more than 63db(A) |
|
Vibration |
X, Y, ZVibration range is not more than 3μm |
|
Dimension of working area(W1×D1×H1) |
730×650×950mm |
1030*650*950mm |
Overall dimension (W×D×H) |
900×730×1950mm |
1200*730*1950 mm |
Power |
AC 220V/50HZ |
|
Max. power (W) |
400W |
800W |
Weight |
150Kg |
300Kg |
Material |
steel plate varnish /stainless steel |
