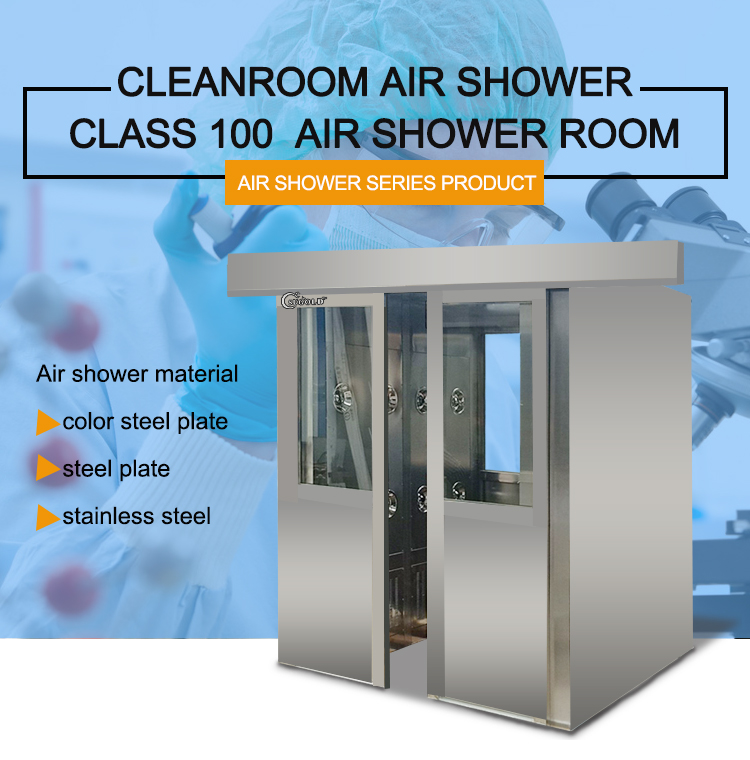

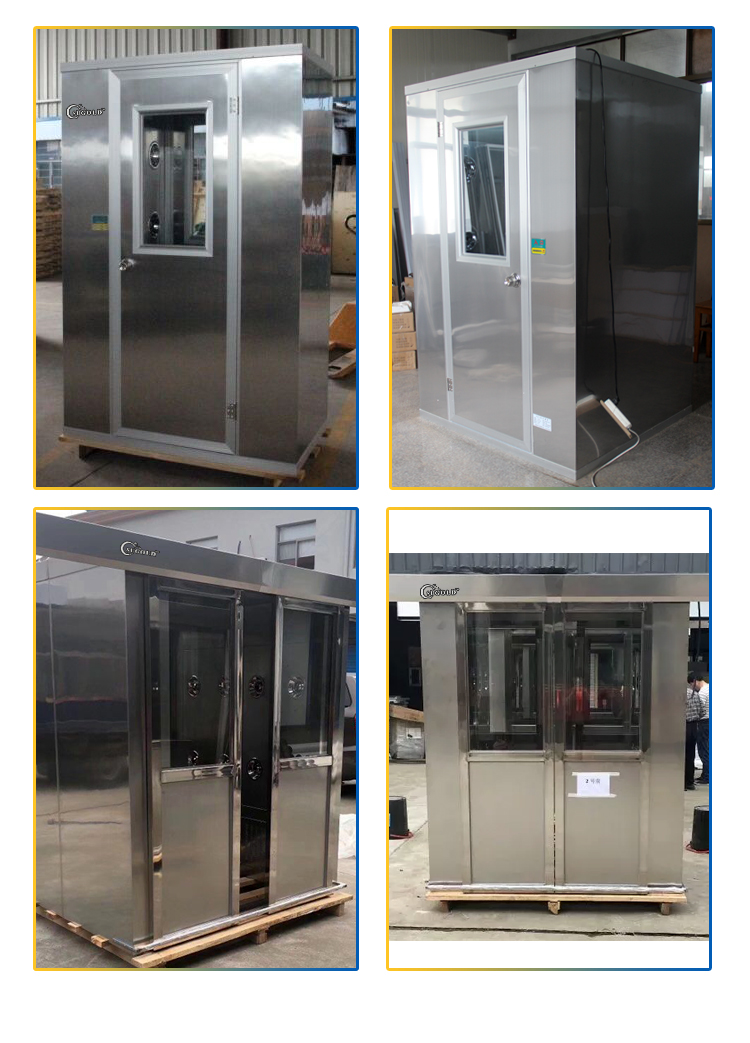

FLB-1C Double person-Single side Air shower
Air shower series product is a kind of partial purifying equipment of strong universality. With novel structure, beautiful appearance, reliable running, low consumption, energy saving and convenient maintenance, it is widely used in electron, machinery, medicine, foodstuff, color packing, brewage, biological engineering and other industry and scientific research fields. It is usually installed between clean room and unclean room. When people and goods enter into clean room, they have to be blown at first. The blown clean air can get rid of dust bough by people and goods and can effectively prevent dust source from entering into clean area.
Principle

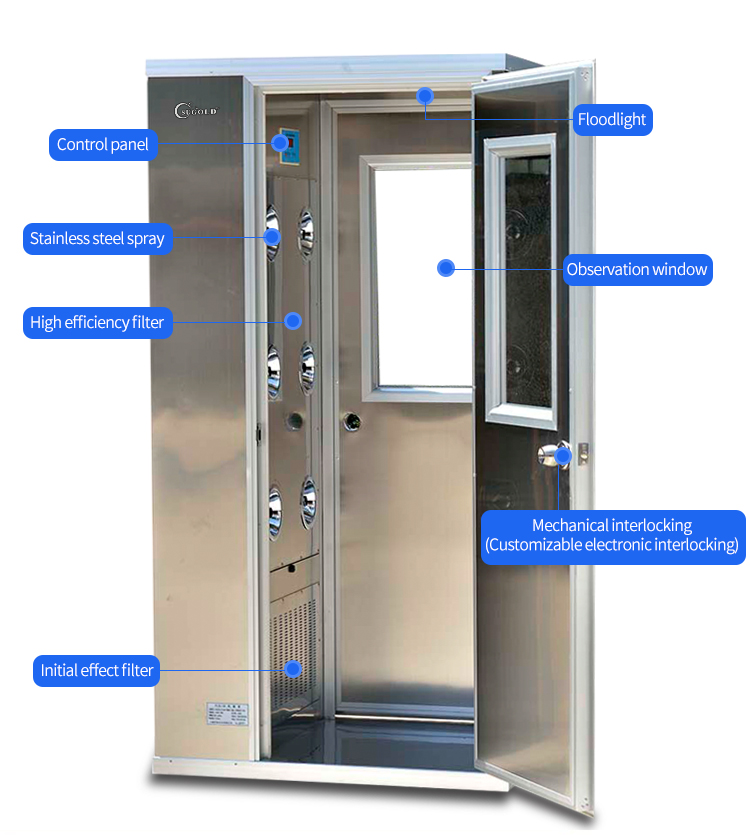

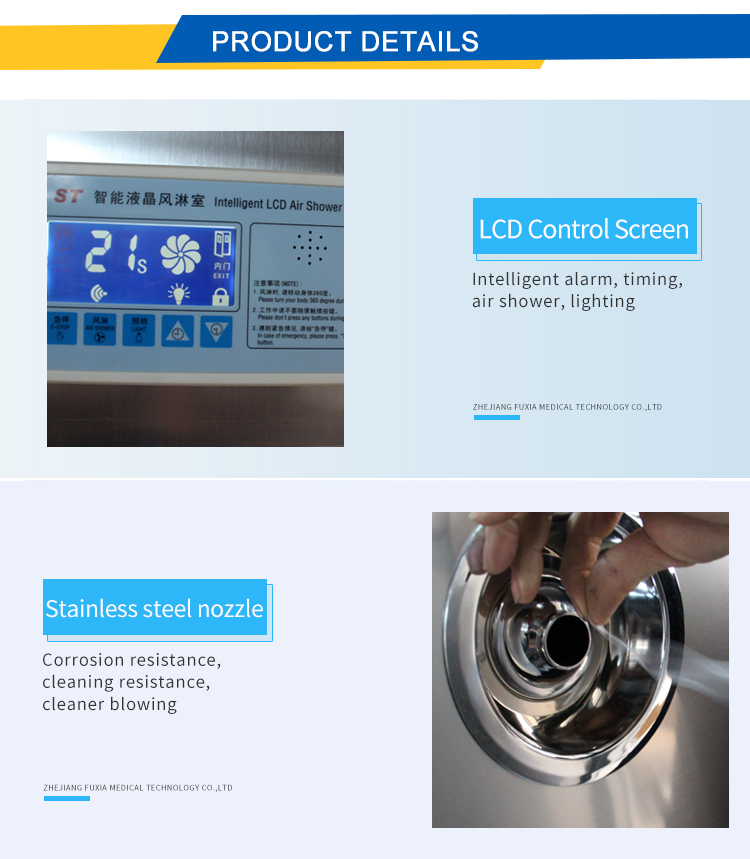

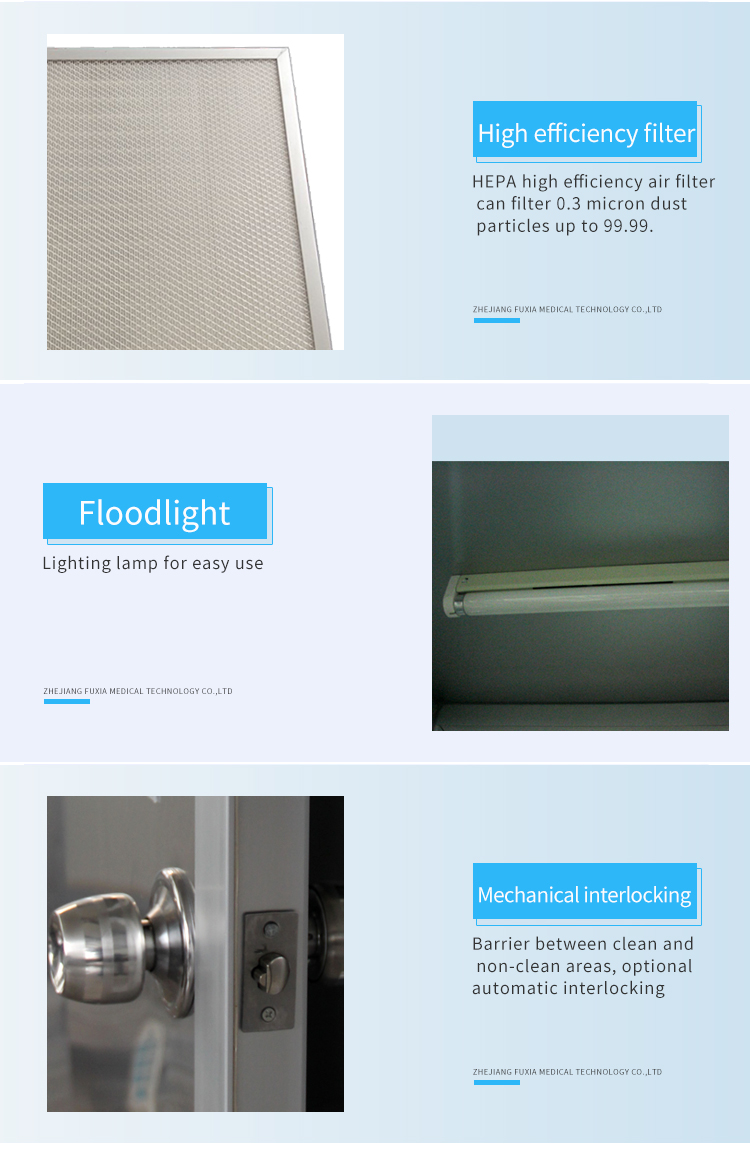

The air inside of air shower is firstly filtered under the action of fan and enters into static pressure tank. After filtered with high-efficiency air filter, clean air is jet out at high speed from the nozzle of air shower. The nozzle angel is adjustable. It can effectively blow out dust attached on people and goods’ surface. The blown dust enters into primary-efficiency air filter again, circulating so and reaching to the aim of air shower.
Air shower material
1. color steel plate 2. steel plate 3. stainless steel

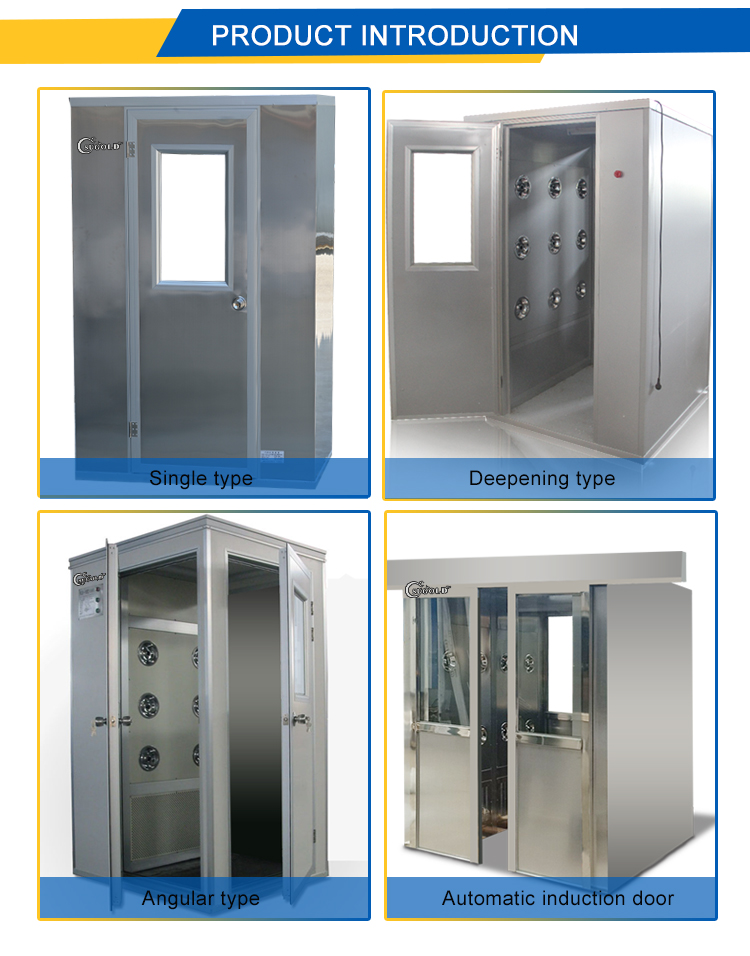

Air shower type
people shower

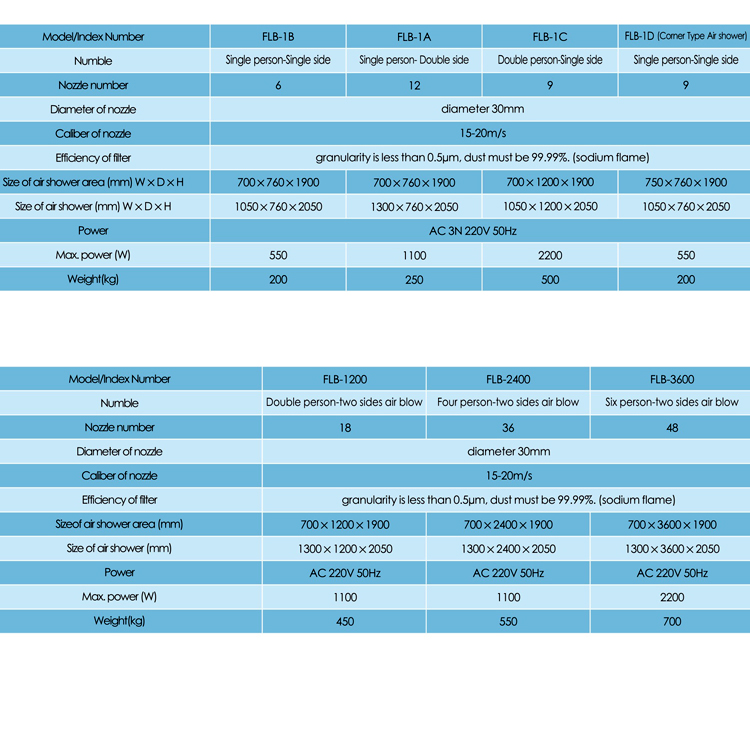

Model/Index Number |
FLB-1B |
FLB-1A |
FLB-1C |
FLB-1D |
||
Numble |
Single -single |
Single-double |
Double-single |
Single-single |
||
Nozzle number |
6 |
12 |
9 |
6 |
||
Diameter of nozzle |
diameter 30mm |
|||||
Caliber of nozzle |
15-20m/s |
|||||
Efficiency of filter |
granularity is less than 0.5μm, dust must be 99.99%. (sodium flame) |
|||||
Size of air shower area (mm) W D H |
700×750×1950 |
700×750×1950 |
750×1150×1950 |
750×750×1950 |
||
Size of air shower (mm) W D H |
1050×760×2050 |
1300×760×2050 |
1050×1200×2050 |
1050×760×2050 |
||
Power |
AC 3N 220V 50Hz |
|||||
Max. power (W) |
550 |
1100 |
2200 |
550 |
||
Weight(kg) |
200 |
250 |
500 |
200 |
