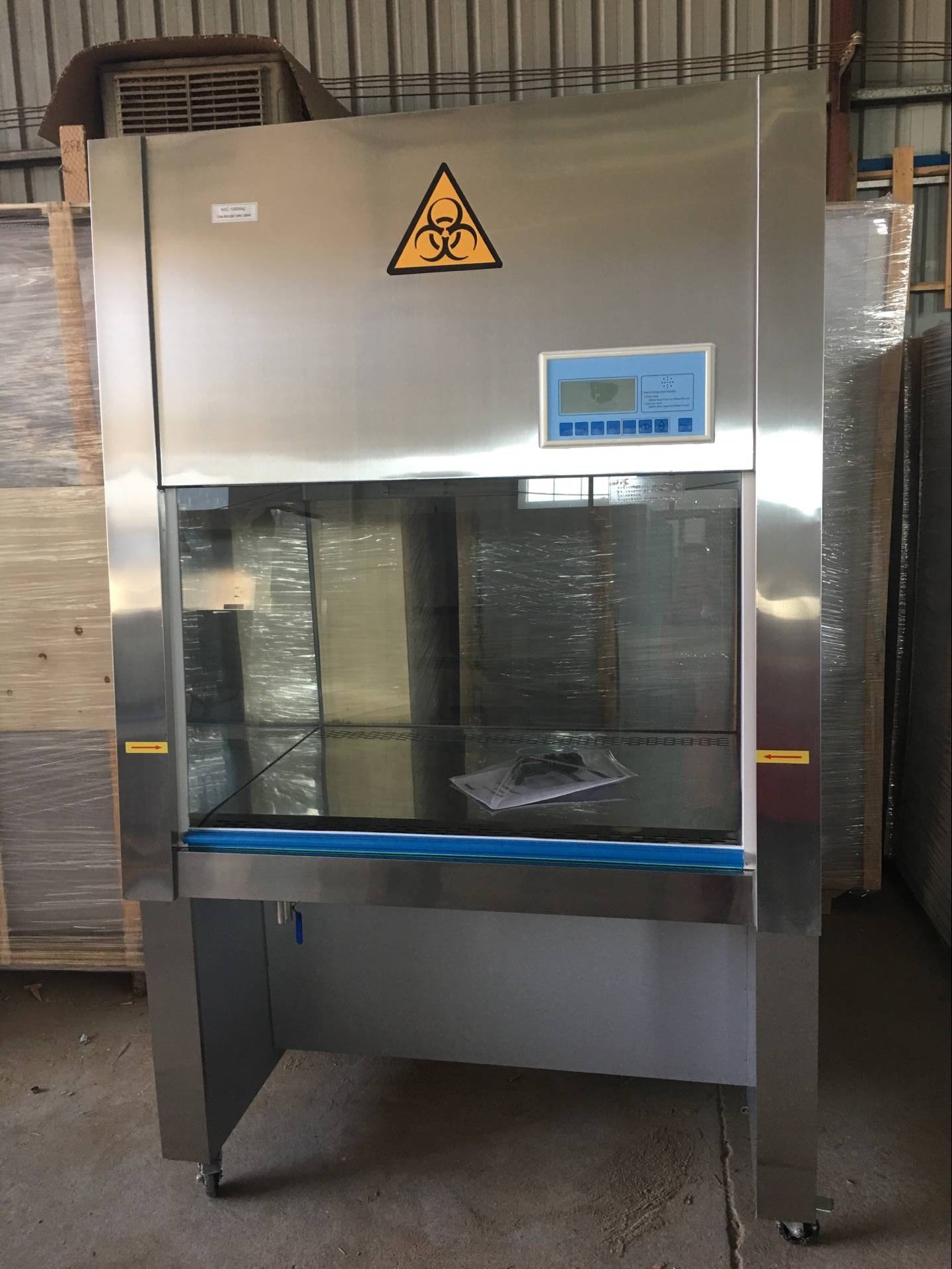

Biological safety cabinet BSC-1000IIA2

日期：2024-04-25 00:28

浏览次数：216

摘要： BSC-1000IIA2 BSC-1300IIA2 BSC-1600IIA2 Clean biological safety cabinet is necessary in animalcule lab, especially in the condition needing protection measure, such as medicine, pharmacy, scientific research and so on. Main characters 1 It accords with physical engineering principle, 10°inclination design, so the operating feel is more excellent. 2 Air insulation design to avoid cross pollution inside and outside air circulation . 70% Air Recirculation, 30% Air Exhaus.

BSC-1000IIA2 BSC-1300IIA2 BSC-1600IIA2

Clean biological safety cabinet is necessary in animalcule lab, especially in the condition needing protection measure, such as medicine, pharmacy, scientific research and so on.
Main characters

1 It accords with physical engineering principle, 10°inclination design, so the operating feel is more excellent.

2 Air insulation design to avoid cross pollution inside and outside air circulation . 70% Air Recirculation, 30% Air Exhaust,vertical laminar negative pressure.

3 Equipped with spring up/down movable door in the front and back of work bench, flexible and convenient to locate

4 Equipped with special filter on ventilation to keep vented air conforming to national standard.

5 Contact switch adjusts voltage to keep wind speed in working area in ideal state all the time.

6 Operate with LED panel.

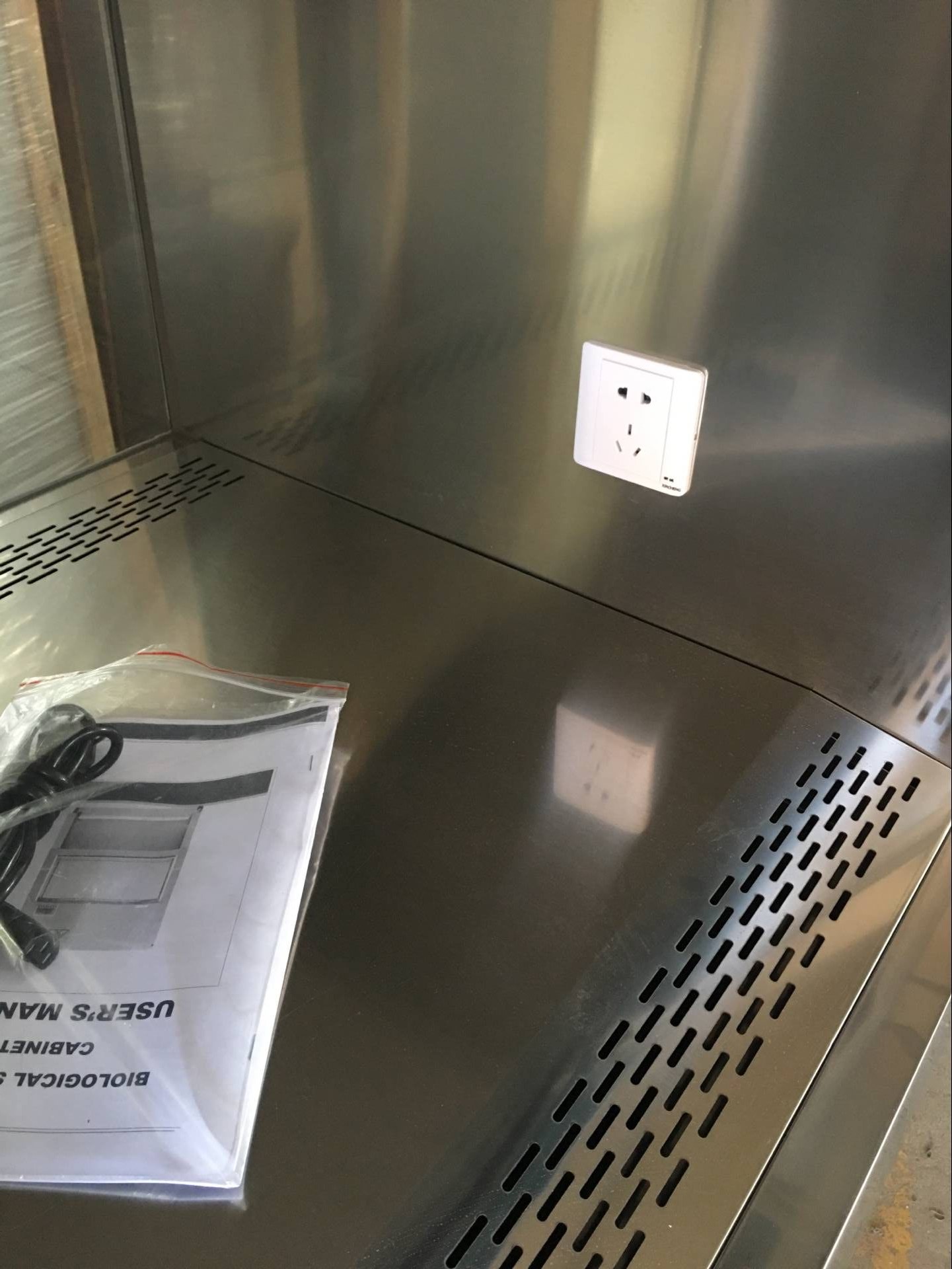

7 The material of the work area is 304 stainless steel.

Parameter / model	BSC-1000IIA2	BSC-1300IIA2	BSC-1600IIA2
Cleaning level	100 Level(USA Federal Standard 209E)≥0.5um Granulae≤3.5per liter
Descending wind speed	≥0.35m/s
Wind speed in	≥0.55m/s
Noise	≤58dB(A)
Half ventilation peak value	≤3µm
Power supply/Max. power consumption	AC220V/50HZ/1KW
Biological safety	Personnel protection: impact type sampler: CFU≤10,
	Product protection: all sampling vessels: CFU≤5
	Cross contamination protection: all double dishes: CFU≤2
working area	1000650580	1300650580		1600650580
Overall dimension	12007501950	15007501950		18007501950
Specification of air-supply filter	95554550*1	129055450*1		159055450*1
Specification and number of fluorescent lamp or UV lamp	20W2/20W1	30W2/30W1		30W2/30W2
Illumination	≥650LX	≥650LX		≥650LX
Weight(kg)	300	340		380
Suit	Single	Double		Double
