Fume hood for laboratory

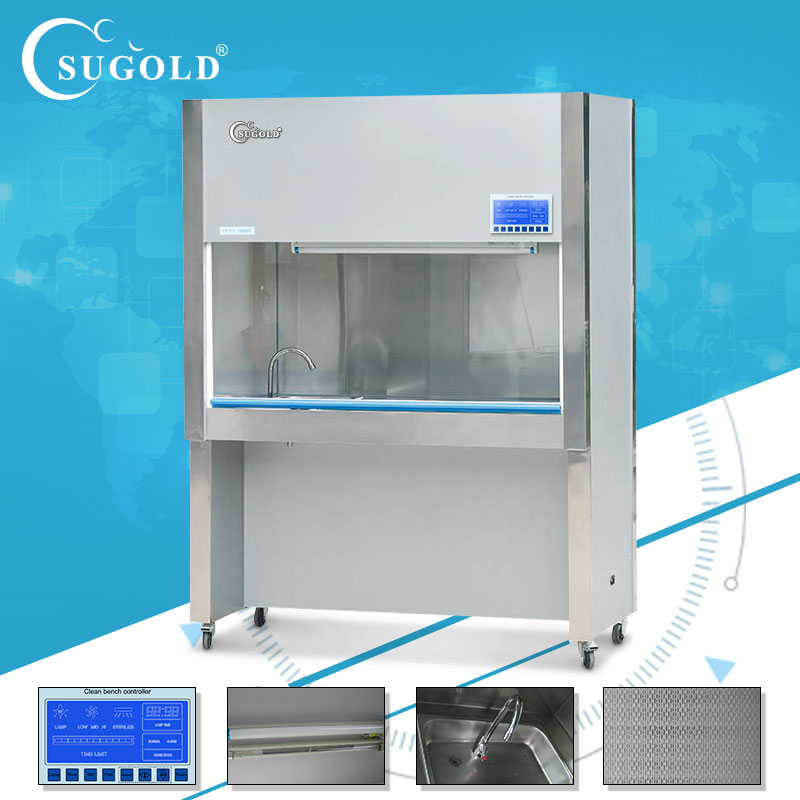

SW-TFG-12   SW-TFG-15  SW-TFG-18 Ventilation Cabinet

TFG series ventilation cabinet is integrated with water, electricity, gas and ventilation. It is equipped with multifunctional socket inside. The window is designed into automatic balance type and is equipped with proper poise for taking its place easily. The bottom is equipped with stainless steel water tank with which liquid antiseptic, experiment leftover can be discharged from this tank through bathing so as to keep experiment environment safe and reliable. Thus, it is a kind of common lab equipment for discharging bad gas, cleaning and discharging in the course of experiment.

 Properties

The flow plate makes bad gases in different height discharged from different parts. The ventilation cabinet discharges internal air out at the speed of 0.5m/s to guarantee there is not any residual air inside, so the ventilation efficiency is high and ventilation capacity is 450-1600m3/h. The glass window may be dragged up and down. It can be stayed on any position to provide safer, more comfort test space for experimenter.

No. Index/Model	SW-TFG-12	SW-TFG-15	SW-TFG-18
Discharging speed	within 0.3m-0.6m/s adjustable
Inlet pressur	>0.5Pax
Power	400W	800W	800W
Power supply	AC, 220 V/50Hz
Weight	160KG	180KG	200KG
Dimension of working area(W1*D1*H1)	1030*695*580mm	1300*695*580mm	1600*695*580mm
Overall dimension W*D*H	1185*760*1950mm	1455*760*1950mm	1755*760*1950mm
