Customer feedback of laminar flow cabinet

日期:2019-12-06 13:52
浏览次数:122
摘要: HS-1300U horizontal air flow double-person clean bench This is a kind of new type horizontal unidirectional clean bench widely used in electron, national defense, precise instrument and apparatus, pharmacy, chemical experiment and so on. characters 1. The vertical air flow, closed bench can effectively prevent outer gas from entering and preventing peculiar smell in operating area from damaging human body. 2. It adopts wind volume adjustable fan system, l

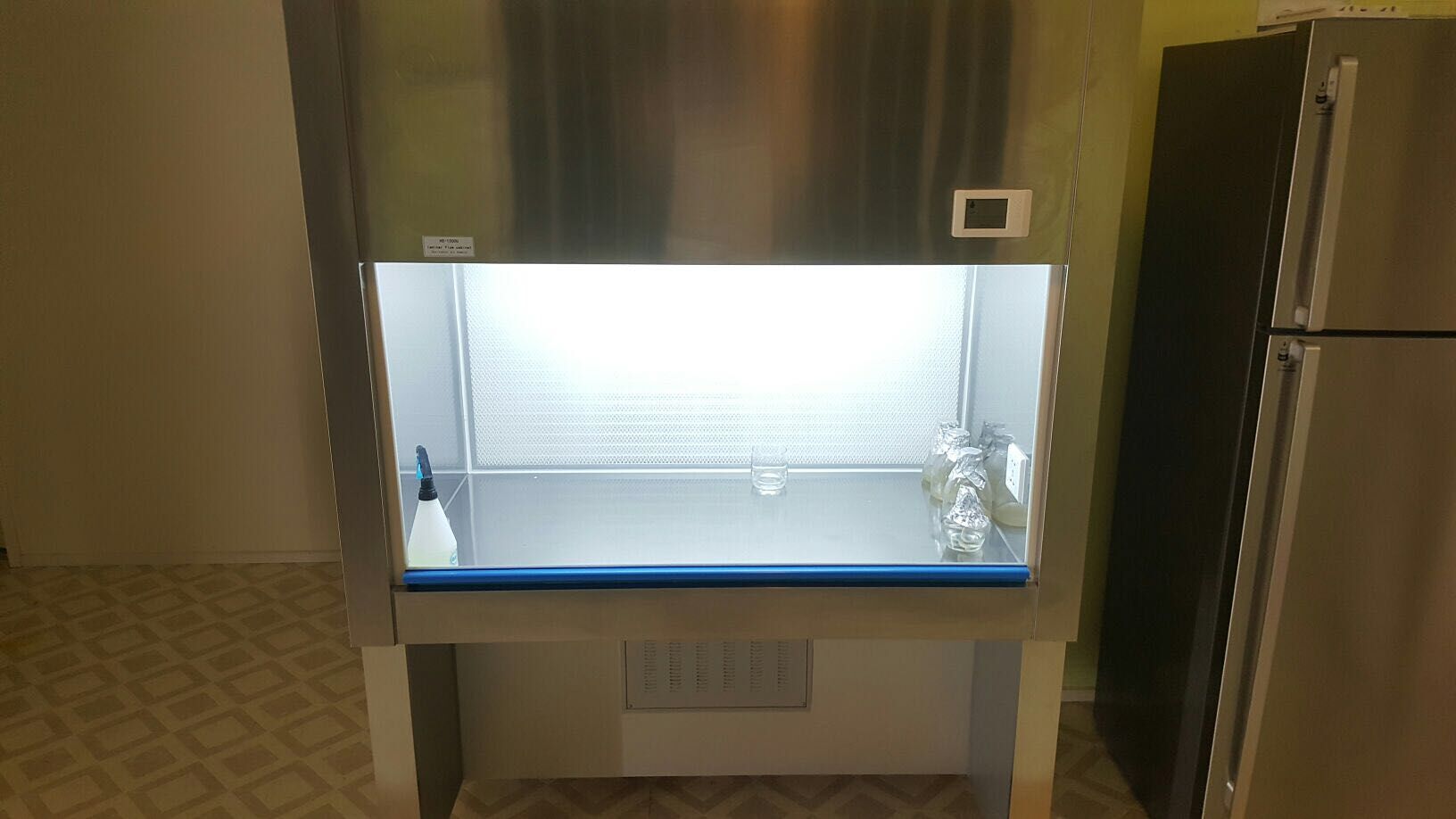

HS-1300U horizontal air flow double-person Clean bench

     This is a kind of new type horizontal unidirectional clean bench widely used in electron, national defense, precise instrument and apparatus, pharmacy, chemical experiment and so on.

characters

1. The vertical air flow, closed bench can    effectively prevent outer gas from entering    and preventing peculiar smell in operating area from damaging human body.
2. It adopts wind volume adjustable fan system, light-touch type switch and dual-speed    voltage regulation device to keep wind speed in working area in ideal state.
3. It adopts super thin type aluminum-frame clapboard-free high-efficiency air filter which    reduces static-pressure tank to the smallest size, thus to reduce the size of outer case.
4. This is the newest type bench in present market. The front cover may be opened directly    for exchanging filter, electric components easily.
5 Operate with LED panel.
6The material of the work area is 304 stainless steel.



No. Index/Model

 HS-1300U horizontal air flow double-person clean bench

Cleaning level

Grade 100(209E U.S. Federal)

Number of bacteria

≤0.5per utensil.hour(90mm utensil)

The average wind speed

0.25~0.45m/s(Speed two-speed)

Noise

≤62dB

Power supply

AC, 220 V/50Hz

Illumination

≥300LX

Half ventilation peak value

≤ 3μm(XYZ direction)

Max. power consumption

 800W

Weight

 250KG

Dimension of working area(W1×D1×H1)

 1030*650*620mm

Overall dimension W*D*H

 1300*770*1800mm

Efficient filter specifications and quantities

 1135*600*38*1

Specification and number of fluorescent lamp or UV lamp of ultraviolet lights

 30w*1 30w*1

Suited number

 Double  Single
